Hyster W20XTR Forklift Battery Replacements

Fitment Summary

The Hyster W20XTR is a forklift commonly used in material handling operations. Confirm your installed battery configuration on the equipment data plate before ordering a replacement.

Confirm the battery compartment, voltage, capacity, connector, and cable configuration before ordering.

Compatible Batteries

6 compatible options found.

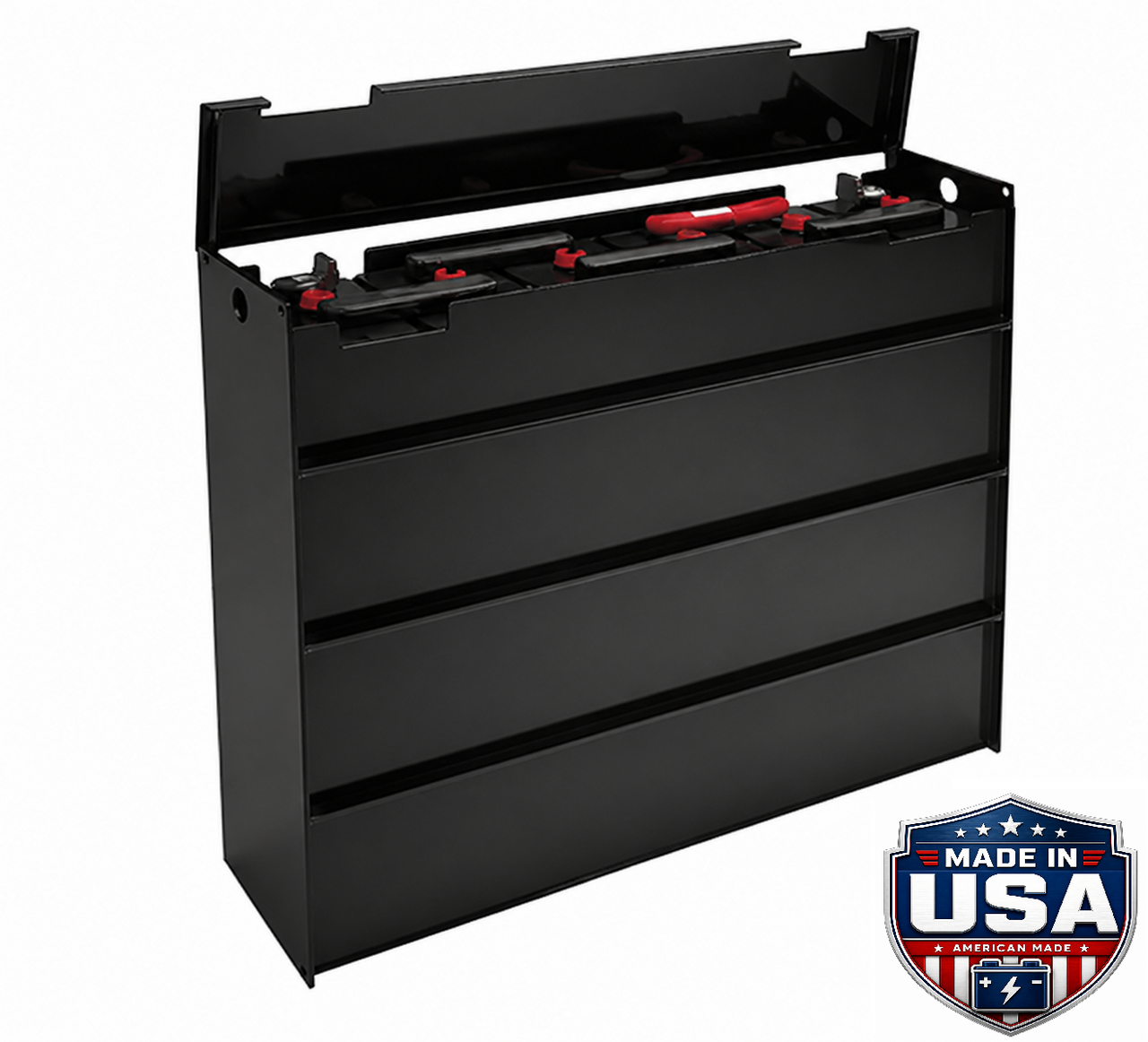

06-085-25 | Tray 467-B

SKU 100615

12V1020 Ahflat plate

Voltage

12V

Capacity

1020 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

29.125 x 12.812 x 23.75

Weight

1000 lbs

Battery Code

06-085-25/467-B

Match Key

06-085-25/467-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 12V / 1020 Ah / 06-085-25/467-B / flat_plate.

View Product DetailsRequest Fitment Help

12-085-13 | Tray 201-B

SKU 100711

24V510 Ahflat plate

Voltage

24V

Capacity

510 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

30.625 x 12,687 x 23.75

Weight

1040 lbs

Battery Code

12-085-13/201-B

Match Key

12-085-13/201-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 510 Ah / 12-085-13/201-B / flat_plate.

View Product DetailsRequest Fitment Help

12-100-13 | Tray 254-B

SKU 100737

24V600 Ahflat plate

Voltage

24V

Capacity

600 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

30.625 x 12.75 x 26.375

Weight

1210 lbs

Battery Code

12-100-13/254-B

Match Key

12-100-13/254-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 600 Ah / 12-100-13/254-B / flat_plate.

View Product DetailsRequest Fitment Help

12-125-13 | Tray 101-B

SKU 100757

24V750 Ahflat plate

Voltage

24V

Capacity

750 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

30.625 x 12,687 x 31

Weight

1450 lbs

Battery Code

12-125-13/101-B

Match Key

12-125-13/101-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 750 Ah / 12-125-13/101-B / flat_plate.

View Product DetailsRequest Fitment Help

GT12-85-13

SKU 100434

24V510 Ahtubular

Voltage

24V

Capacity

510 Ah

Battery Type

tubular

Chemistry

Tubular Lead Acid

Dimensions

0

Weight

851 lbs

Battery Code

GT12-85-13

Match Key

GT12-85-13

Termination

B-20

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 510 Ah / GT12-85-13 / tubular.

View Product DetailsRequest Fitment Help

GT12-85-13

SKU 100434

24V510 Ahtubular

Voltage

24V

Capacity

510 Ah

Battery Type

tubular

Chemistry

Tubular

Dimensions

30.75 x 12.88 x 23.25

Weight

851 lbs

Battery Code

GT12-85-13

Match Key

GT12-85-13

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 510 Ah / GT12-85-13 / tubular.

View Product DetailsRequest Fitment Help

Fitment FAQ

How do I know which forklift battery fits my equipment?

Match the voltage, tray dimensions, weight range, and connector type listed on your forklift data plate to the specs shown on each compatible product. Contact our team to confirm before ordering.

Why are there multiple battery options for my forklift model?

Manufacturers offered the same equipment with different battery configurations, voltages, sizes, covers, terminations, and connectors. Check your data plate to identify the configuration installed on your unit.

Can Radian confirm fitment before shipment?

Yes. Send us your equipment data plate and existing battery photos and we will verify the correct replacement before processing your order.
