Raymond 102XM Forklift Battery Replacements

Fitment Summary

The Raymond 102XM is a forklift commonly used in material handling operations. Confirm your installed battery configuration on the equipment data plate before ordering a replacement.

Confirm the battery compartment, voltage, capacity, connector, and cable configuration before ordering.

Compatible Batteries

6 compatible options found.

12-085-07 | Tray 377-B

SKU 100679

24V255 Ahflat plate

Voltage

24V

Capacity

255 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

25.5 x 8.625 x 23.75

Weight

573 lbs

Battery Code

12-085-07/377-B

Match Key

12-085-07/377-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 255 Ah / 12-085-07/377-B / flat_plate.

View Product DetailsRequest Fitment Help

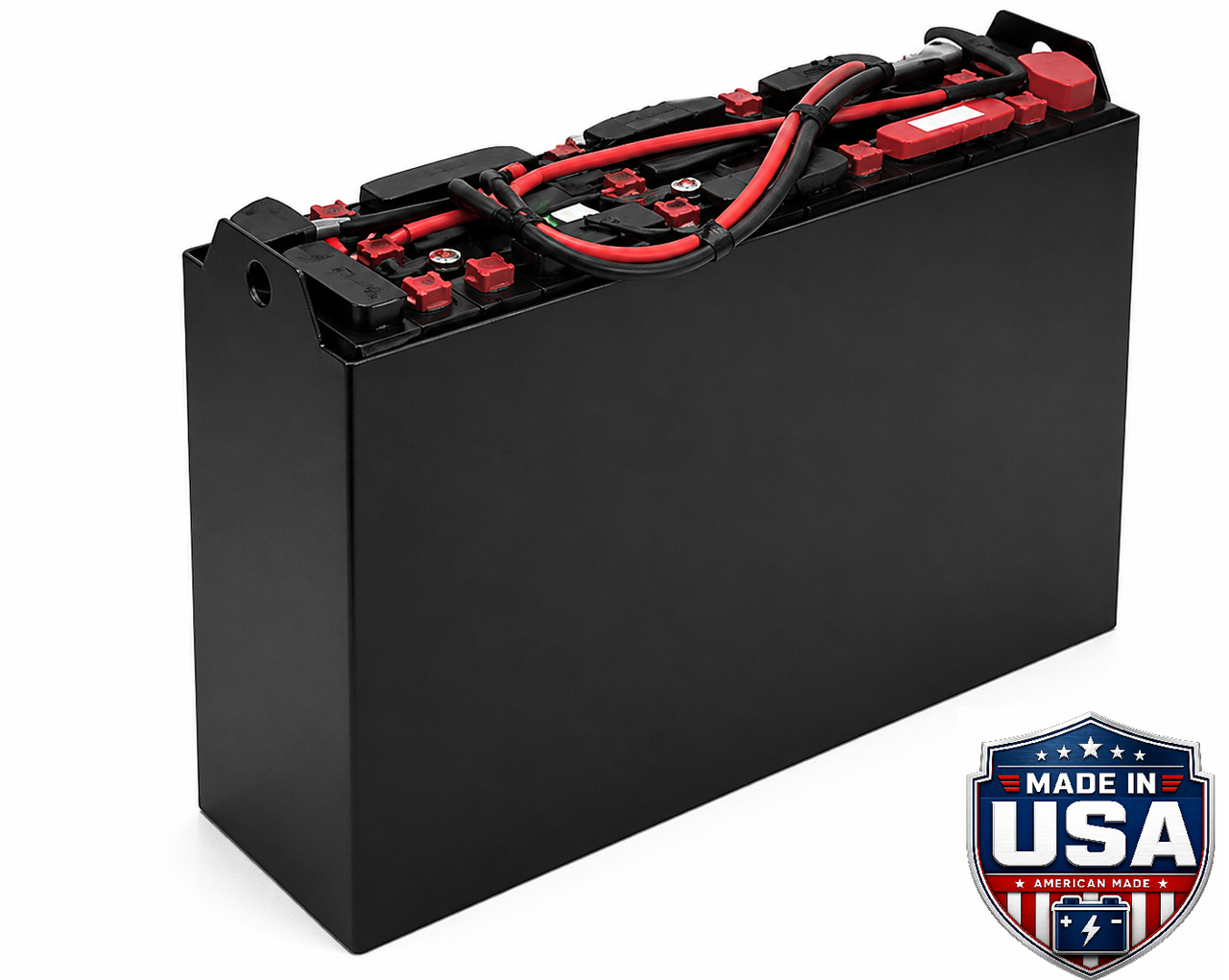

12-125-05 | Tray 1404-B

SKU 100742

24V250 Ahflat plate

Voltage

24V

Capacity

250 Ah

Battery Type

flat plate

Chemistry

Flat Plate

Dimensions

24.75 x 7.625 x 31

Weight

640 lbs

Battery Code

12-125-05/1404-B

Match Key

12-125-05/1404-B

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 250 Ah / 12-125-05/1404-B / flat_plate.

View Product DetailsRequest Fitment Help

GT12-85-5

SKU 100557

24V150 Ahtubular

Voltage

24V

Capacity

150 Ah

Battery Type

tubular

Chemistry

Tubular

Dimensions

26 x 5.75 x 23.25

Weight

328 lbs

Battery Code

GT12-85-5

Match Key

GT12-85-5

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 150 Ah / GT12-85-5 / tubular.

View Product DetailsRequest Fitment Help

GT12-85-5

SKU 100557

24VConfirm capacitytubular

Voltage

24V

Capacity

Confirm capacity

Battery Type

tubular

Chemistry

Tubular Lead Acid

Dimensions

8

Weight

328 lbs

Battery Code

GT12-85-5

Match Key

GT12-85-5

Termination

B-18

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / AH to confirm / GT12-85-5 / tubular.

View Product DetailsRequest Fitment Help

GT12-85-7

SKU 100433

24V255 Ahtubular

Voltage

24V

Capacity

255 Ah

Battery Type

tubular

Chemistry

Tubular

Dimensions

25.50 x 8.50 x 23.25

Weight

473 lbs

Battery Code

GT12-85-7

Match Key

GT12-85-7

Termination

Confirm terminal

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 255 Ah / GT12-85-7 / tubular.

View Product DetailsRequest Fitment Help

GT12-85-7

SKU 100433

24V255 Ahtubular

Voltage

24V

Capacity

255 Ah

Battery Type

tubular

Chemistry

Tubular Lead Acid

Dimensions

9

Weight

473 lbs

Battery Code

GT12-85-7

Match Key

GT12-85-7

Termination

B-18

Connector

Confirm connector

Availability

available

Best match when your data plate shows: 24V / 255 Ah / GT12-85-7 / tubular.

View Product DetailsRequest Fitment Help

Fitment FAQ

How do I know which forklift battery fits my equipment?

Match the voltage, tray dimensions, weight range, and connector type listed on your forklift data plate to the specs shown on each compatible product. Contact our team to confirm before ordering.

Why are there multiple battery options for my forklift model?

Manufacturers offered the same equipment with different battery configurations, voltages, sizes, covers, terminations, and connectors. Check your data plate to identify the configuration installed on your unit.

Can Radian confirm fitment before shipment?

Yes. Send us your equipment data plate and existing battery photos and we will verify the correct replacement before processing your order.
