Fits E-Z-GO TXT Freedom LE

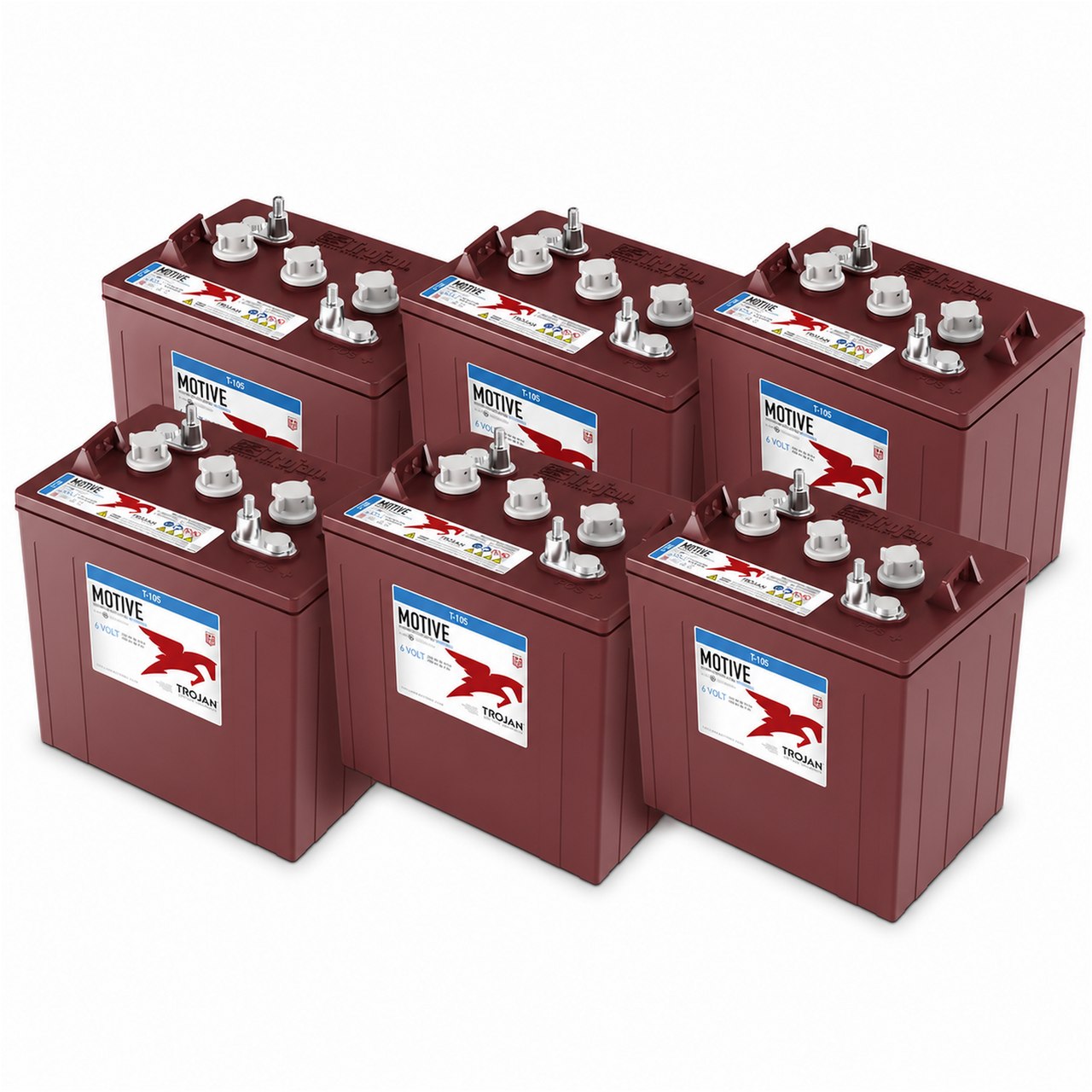

Trojan T105-AES 36V Six-Battery Set for E-Z-GO TXT Freedom LE
- Fitment SKU
- GOLF-EZGO-TXTFREEDOMLE-T105-AES-6PK-36V
- Manufacturer model / MPN
- T105-AES
AGM Maintenance-Free · Complete 36V set
A sealed AGM six-battery alternative matched to the E-Z-GO TXT Freedom LE 36V electrical configuration, with final physical fit and charger compatibility confirmed during quoting.
- System
- 36V
- Complete set
- 6 × 6V
- Capacity
- 202 Ah20-hour rate
- Chemistry
- AGM Maintenance-Free
Radian will confirm physical fit, terminal position, charger compatibility, availability, freight, and delivery before purchase.
Product details
Overview
A sealed AGM six-battery alternative matched to the E-Z-GO TXT Freedom LE 36V electrical configuration, with final physical fit and charger compatibility confirmed during quoting.
This complete set contains 6 matched 6V batteries for the 36V TXT Freedom LE electrical configuration. No routine watering is required; inspect connections and the charging setup regularly.
Use only an AGM-compatible charger profile approved for this battery set; confirm charger make, model, output, and profile during quoting.
Final physical fit, terminal position, cable layout, and charger compatibility are confirmed during the quote process.
- Complete set of six matched 6V batteries
- 202 Ah nominal capacity at the 20-hour rate
- Sealed AGM construction with no routine watering
- AP or M6/M8 terminal choice
- Fitment-confirmed quote before purchase
Specifications
| Product identity | |
|---|---|
| Fitment SKU | GOLF-EZGO-TXTFREEDOMLE-T105-AES-6PK-36V |
| Manufacturer model / MPN | T105-AES |
| Electrical | |
| System voltage | 36V |
| Individual battery voltage | 6V |
| Nominal capacity | 202 Ah · 20-hour rate |
| Chemistry / technology | AGM Maintenance-Free |
| Individual battery | |
| Dimensions | 10.30 L × 7.06 W × 10.73 H in |
| Weight | 70 lb |
| Complete set | |
| Battery quantity | 6 |
| Battery-only complete-set weight | 420 lbBattery-only weight; not packaged shipping weight. |
| Terminal and installation | |
| Approved terminal choices | AP, M6/M8 |
| Maintenance, charger, and warranty | |
| Maintenance | No routine watering is required; inspect connections and the charging setup regularly. |
| Charger compatibility | Use only an AGM-compatible charger profile approved for this battery set; confirm charger make, model, output, and profile during quoting. |
| Warranty | Confirm current coverage with a Radian specialist. |
Fitment
- Equipment
- Golf Cart
- Make
- E-Z-GO
- Model
- TXT Freedom LE
- Electrical system
- 36V
- Layout
- Six 6V batteries in series
- Terminal
- Select in the product summary
Use only an AGM-compatible charger profile approved for this battery set; confirm charger make, model, output, and profile during quoting.
Pre-order verification checklist
- Cart data plate and exact model
- 36V system voltage and six-battery count
- Tray and hold-down clearances
- Individual battery dimensions
- Cable layout and polarity
- Terminal type and position
- Charger make, model, output, and chemistry profile
Shipping
Quote-only delivery planning
Freight and delivery are confirmed for this battery set
Availability, freight handling, destination requirements, and delivery details are confirmed during quoting. The 420 lb battery-only set weight is not a packaged shipping weight.
Delivery requirements may depend on the destination and available unloading capability. A Radian specialist will confirm the applicable details before an order is placed.
Call (888) 646-9588 or use the quote form for product-specific help.
Documents
Contact Radian for the latest technical documentation.
Call (888) 646-9588Other matched choices
Compare other TXT Freedom LE battery options
Review the two other approved battery-set options for this verified 36V configuration.
Flooded Lead-Acid
Trojan T-105 36V Six-Battery Set for E-Z-GO TXT Freedom LE
- Capacity
- 225 Ah
- Set weight
- 372 lb
- Terminals
- ELPT or EHPT or EAPT or EUT
Product-specific support
Confirm this Trojan set with a battery specialist
Have the cart data plate, charger make and model, tray measurements, cable layout, and preferred terminal ready.
Common questions
Trojan T105-AES fitment FAQs
Which terminal should I choose?
Choose AP or M6/M8 before requesting a quote. Radian will confirm terminal position and cable compatibility.
Can I use the current TXT Freedom LE charger?
Use only an AGM-compatible charger profile approved for this battery set; confirm charger make, model, output, and profile during quoting.
Does the electrical match guarantee physical fit?
No. Radian confirms the tray and hold-down clearances, individual battery dimensions, cables, polarity, and terminal position during quoting.
Why is this battery set quote only?
The quote process confirms the selected terminal, physical fit, charger compatibility, current availability, freight, and delivery requirements before purchase.
What maintenance does this set require?
No routine watering is required; inspect connections and the charging setup regularly.
