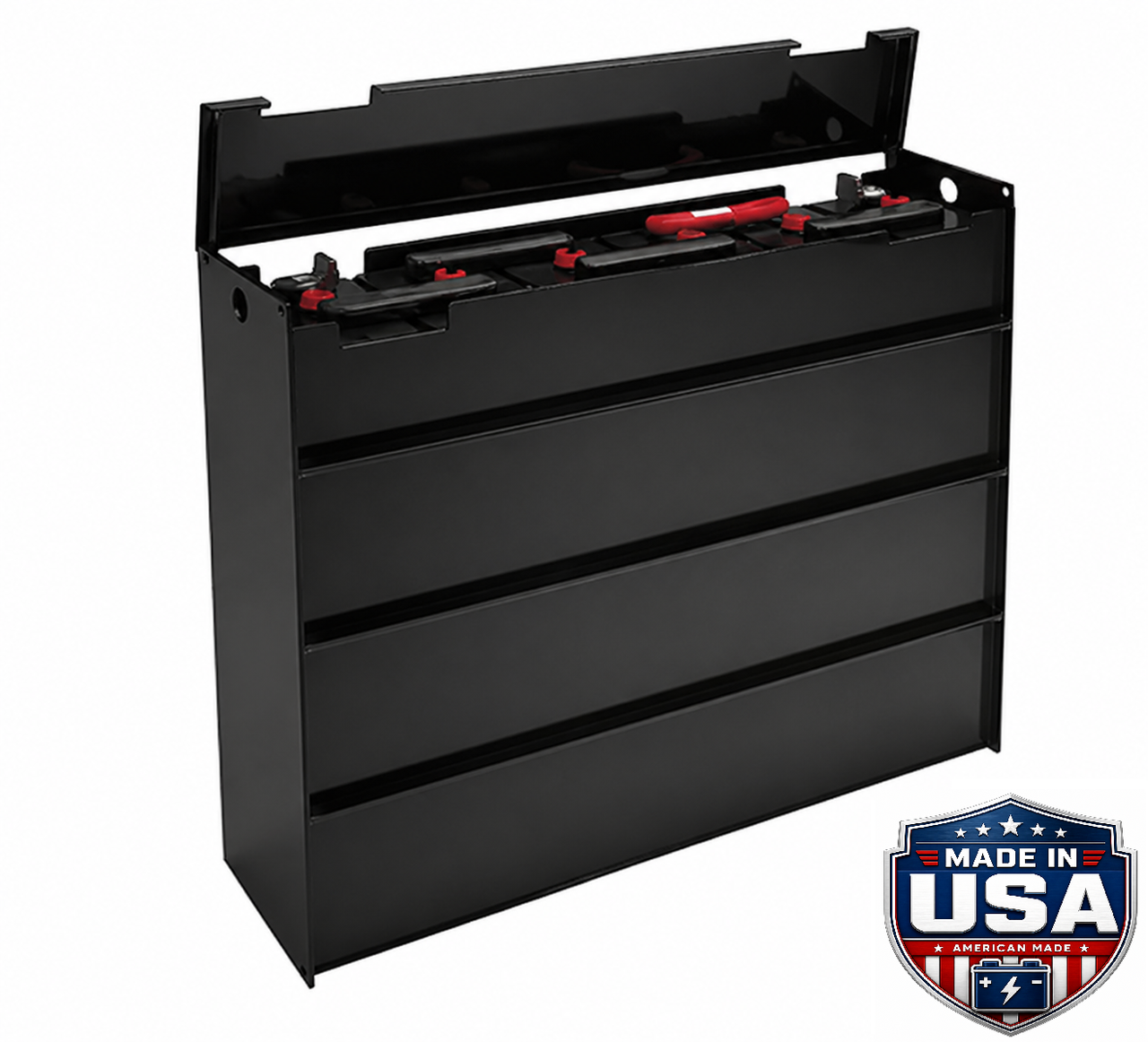

06-085-11 | Tray 1072-B

06-085-11 | Tray 1072-B

SKU: 100598

Voltage12V
Capacity425 Ah
Average Weight470 lbs
ChemistryFlat Plate Lead Acid
Was: $2,213.28
Now: $2,151.05
SKU:
100598
Voltage:
12V
Capacity (Ah):
425 Ah
Average Weight:
470 lbs
Length (in):
19.062
Width (in):
8.812
Height (in):
22.625
Dimensions:
19.062 x 8.812 x 22.625 in
Chemistry:
Flat Plate Lead Acid
Cells:
6
Plate Rating:
85 Ah / positive plate
Battery Model:
06-085-11
Tray Reference:
1072-B
Battery Cover:
No
EE Spark Proof:
No
High Gravity:
No
Flow-Rite Watering:
No
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 06-085-11 on tray 1072-B delivers 425 Ah at 12V in a flat-plate lead-acid configuration. The 19.062 x 8.812 x 22.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 12V (6 × 2V cells)
  • Capacity: 425 Ah at the 6-hr rate
  • Energy: 4.92 kWh
  • Plate rating: 85 Ah / positive plate
  • Plate configuration: 11-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 19.062 x 8.812 x 22.625 in (L × W × H)
  • Average weight: 470 lbs
  • Battery cover: No
  • Tray reference: 1072-B

Flat-Plate Construction

Applications

This battery is sized for compact, low-voltage Class III walkies, scissor lifts, and small material-handling equipment that benefit from a flat-plate lead-acid power source with broad charger compatibility. The 1072-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: Standard 5-year warranty
!
