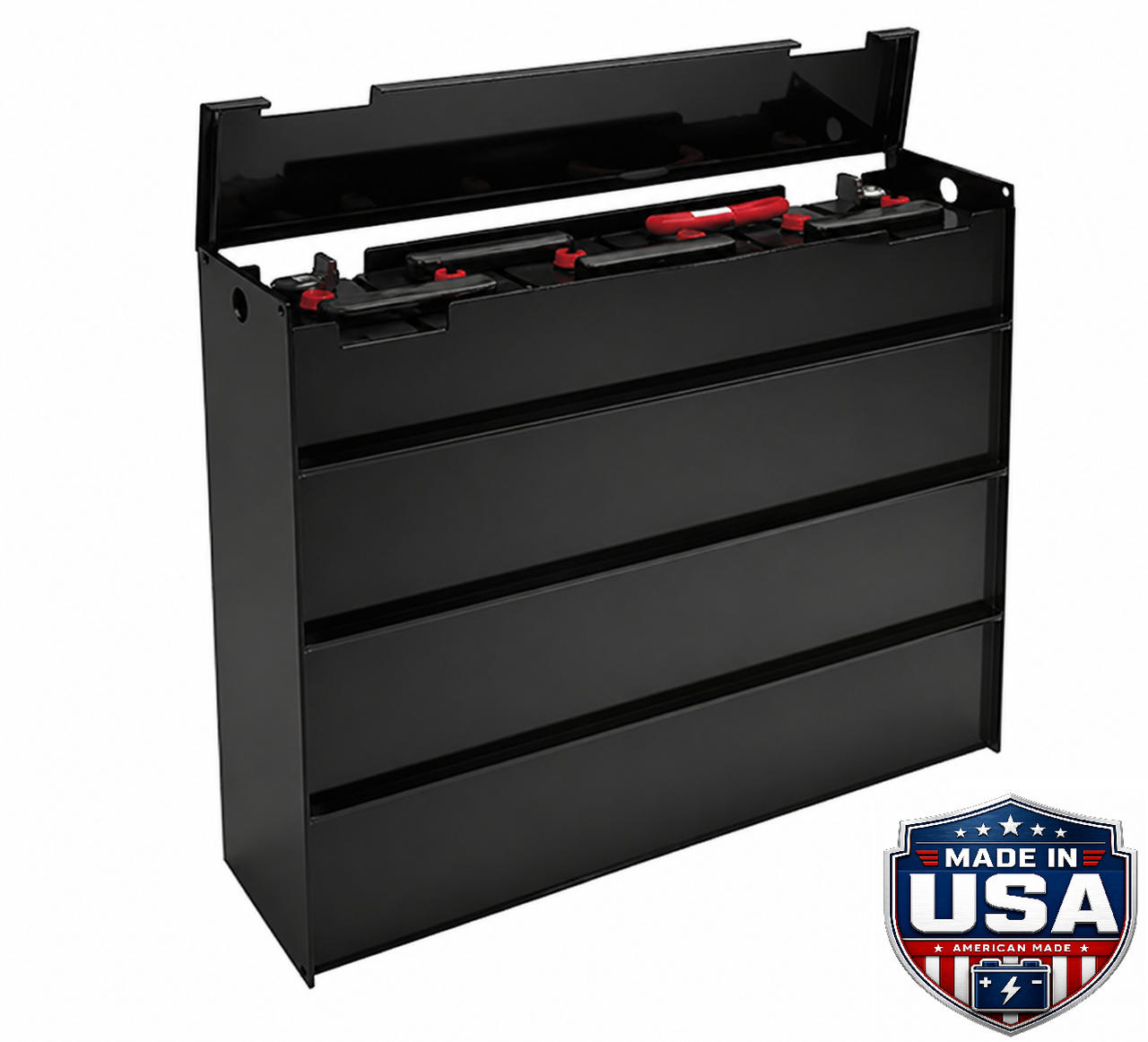

SKU 100609
06-085-19 | Tray 797-B
One complete new industrial battery, at 22.375 x 12.812 x 23.75 in.
- Battery weight755 lbs
- Dimensions22.375 x 12.812 x 23.75 in
- ConditionNew
- WarrantyStandard 5-year warranty
Product information
Overview
About this battery
Product Overview
The 06-085-19 on tray 797-B delivers 765 Ah at 12V in a flat-plate lead-acid configuration. The 22.375 x 12.812 x 23.75 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 12V (6 × 2V cells)
- Capacity: 765 Ah at the 6-hr rate
- Energy: 8.86 kWh
- Plate rating: 85 Ah / positive plate
- Plate configuration: 19-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 22.375 x 12.812 x 23.75 in (L × W × H)
- Average weight: 755 lbs
- Battery cover: Yes
- Tray reference: 797-B
Flat-Plate Construction
Applications
This battery is sized for compact, low-voltage Class III walkies, scissor lifts, and small material-handling equipment that benefit from a flat-plate lead-acid power source with broad charger compatibility. The 797-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
Battery specifications
- System voltage: 12V
- Battery dimensions: 22.375 x 12.812 x 23.75 in
- Battery weight: 755 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- Standard 5-year warranty from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Direct Fill Link
- Water Monitor Installed
Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Battery identity
| Battery Model | 06-085-19 |
|---|
Electrical and physical
| System Voltage | 12V |
|---|---|
| Capacity | 765 Ah |
| Battery Dimensions | 22.375 x 12.812 x 23.75 in |
| Chemistry | Flat Plate Lead Acid |
| Battery Design | Flat Plate |
| Condition | New |
| Battery Weight | 755 lbs |
| Warranty | Standard 5-year warranty |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
Standard 5-year warranty from date of delivery
This is a new flat plate industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
