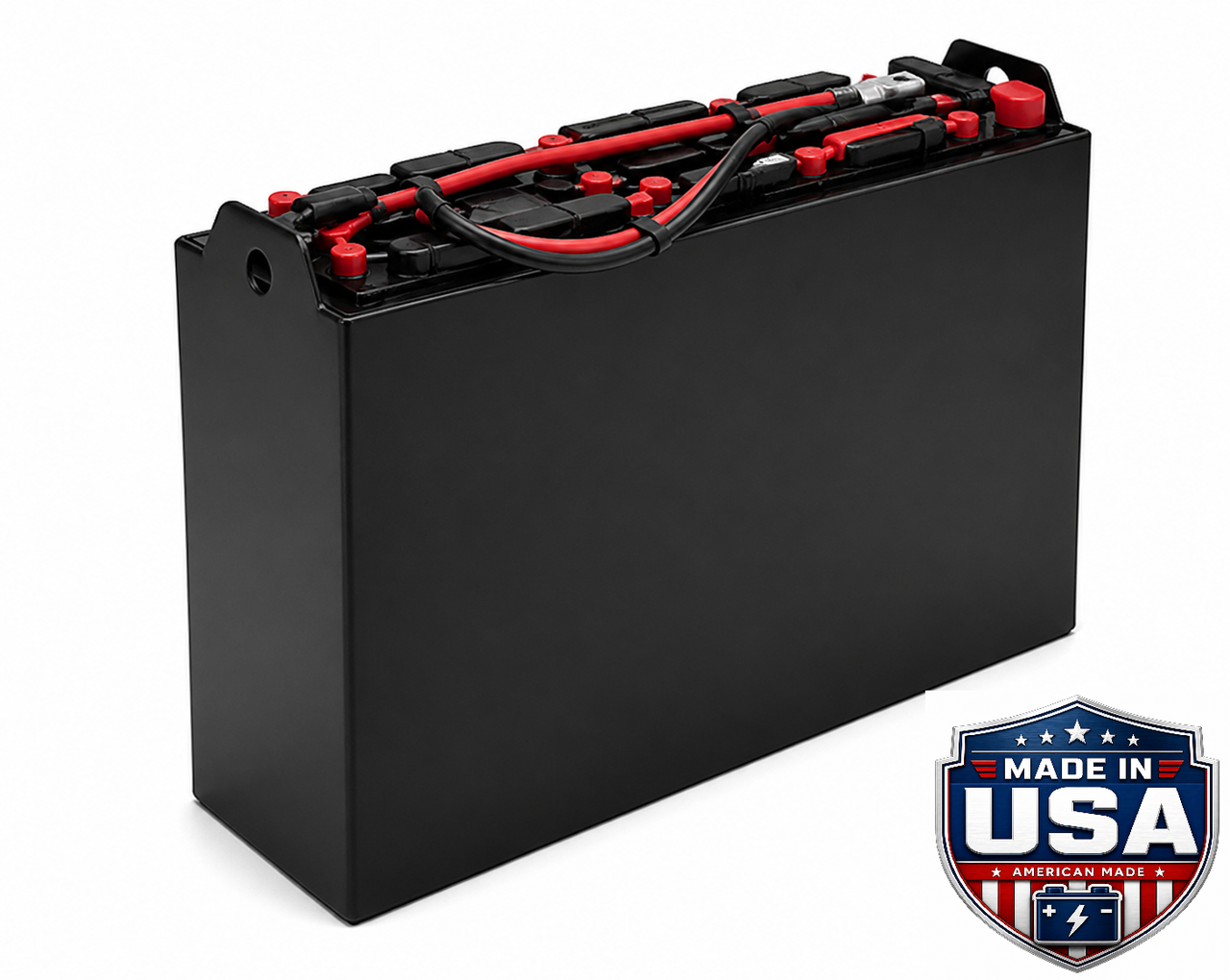

09-150-11 | Tray 1103-B

09-150-11 | Tray 1103-B

SKU: 100636

Voltage18V
Capacity750 Ah
Average Weight1235 lbs
ChemistryFlat Plate Lead Acid
Was: $5,046.54
Now: $4,651.00
SKU:
100636
Voltage:
18V
Capacity (Ah):
750 Ah
Average Weight:
1235 lbs
Length (in):
40
Width (in):
9.062
Height (in):
29.625
Dimensions:
40 x 9.062 x 29.625 in
Chemistry:
Flat Plate Lead Acid
Cells:
9
Plate Rating:
150 Ah / positive plate
Battery Model:
09-150-11
Tray Reference:
1103-B
Battery Cover:
No
Flow-Rite Watering:
No
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 09-150-11 on tray 1103-B delivers 750 Ah at 18V in a flat-plate lead-acid configuration. The 40 x 9.062 x 29.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 18V (9 × 2V cells)
  • Capacity: 750 Ah at the 6-hr rate
  • Energy: 13.03 kWh
  • Plate rating: 150 Ah / positive plate
  • Plate configuration: 11-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 40 x 9.062 x 29.625 in (L × W × H)
  • Average weight: 1235 lbs
  • Battery cover: No
  • Tray reference: 1103-B

Flat-Plate Construction

Applications

This battery is purpose-built for Class III electric pallet jacks and walkie stackers, where reliable single-shift runtime and straightforward watering maintenance keep the unit on the floor. The 1103-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: Standard 5-year warranty
!
