09-150-11 | Tray 881-B

09-150-11 | Tray 881-B

SKU: 100638

Voltage18V
Capacity750 Ah
Average Weight1240 lbs
ChemistryFlat Plate Lead Acid
Was: $4,939.88
Now: $4,556.89
SKU:
100638
Voltage:
18V
Capacity (Ah):
750 Ah
Average Weight:
1240 lbs
Length (in):
39
Width (in):
9.062
Height (in):
29.875
Dimensions:
39 x 9.062 x 29.875 in
Chemistry:
Flat Plate Lead Acid
Cells:
9
Plate Rating:
150 Ah / positive plate
Battery Model:
09-150-11
Tray Reference:
881-B
Battery Cover:
No
Flow-Rite Watering:
No
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

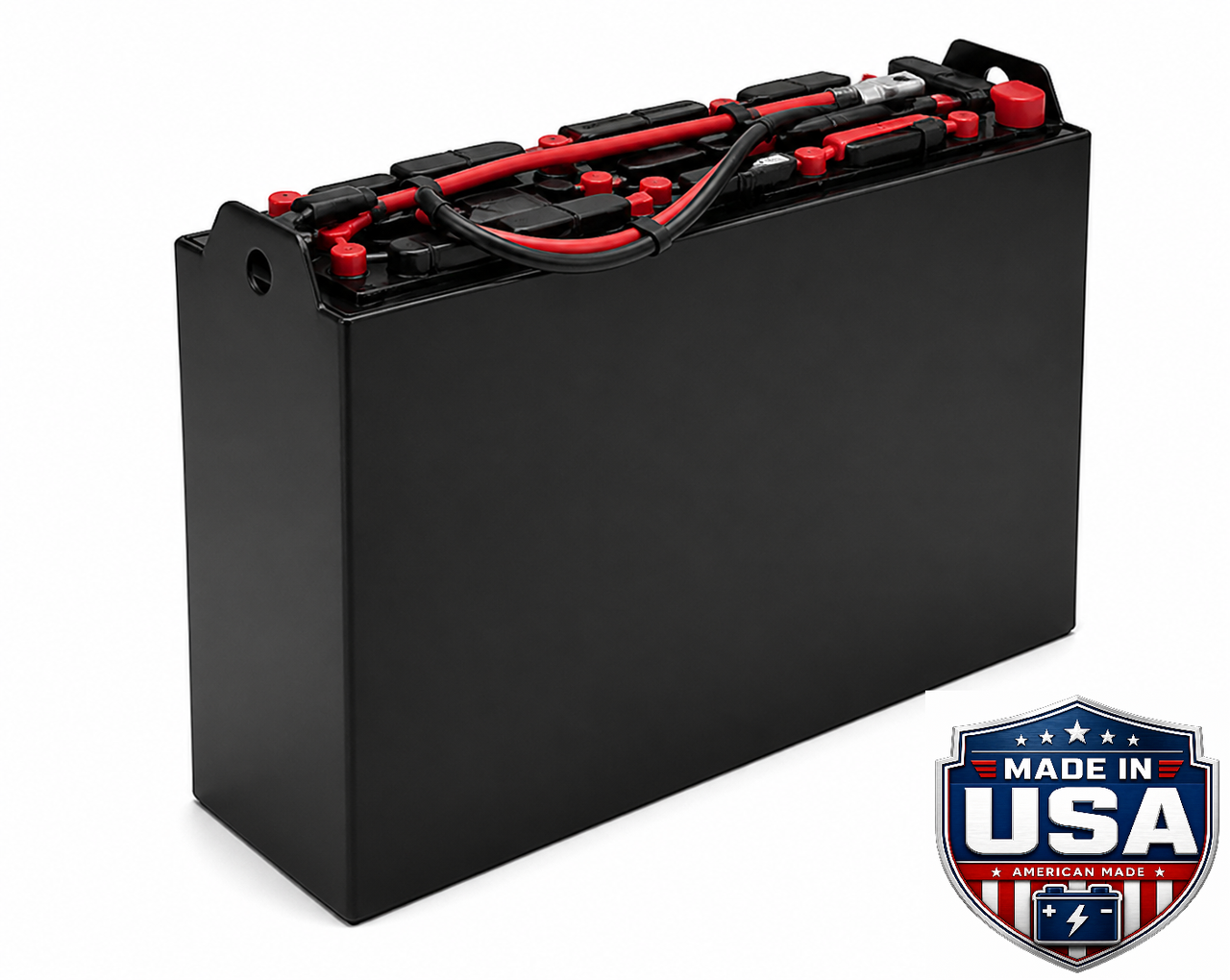

The 09-150-11 on tray 881-B delivers 750 Ah at 18V in a flat-plate lead-acid configuration. The 39 x 9.062 x 29.875 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 18V (9 × 2V cells)
  • Capacity: 750 Ah at the 6-hr rate
  • Energy: 13.03 kWh
  • Plate rating: 150 Ah / positive plate
  • Plate configuration: 11-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 39 x 9.062 x 29.875 in (L × W × H)
  • Average weight: 1240 lbs
  • Battery cover: No
  • Tray reference: 881-B

Flat-Plate Construction

Applications

This battery is purpose-built for Class III electric pallet jacks and walkie stackers, where reliable single-shift runtime and straightforward watering maintenance keep the unit on the floor. The 881-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: Standard 5-year warranty
!
