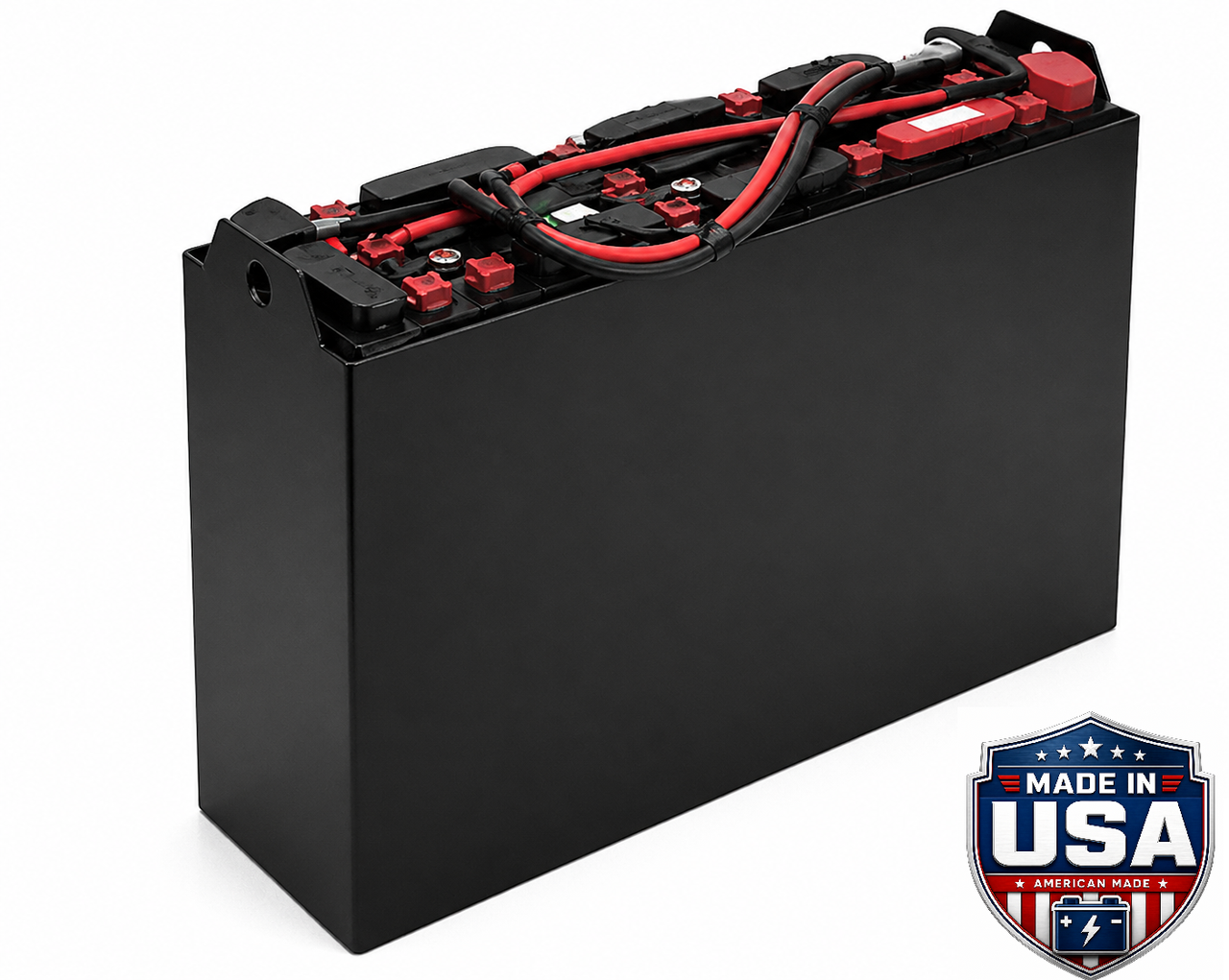

12-085-05 | Tray 973AHL-B

12-085-05 | Tray 973AHL-B

SKU: 100664

Voltage24V
Capacity170 Ah
Average Weight475 lbs
ChemistryFlat Plate Lead Acid
$2,821.04
SKU:
100664
Voltage:
24V
Capacity (Ah):
170 Ah
Average Weight:
475 lbs
Length (in):
28.5
Width (in):
7.5
Height (in):
23.75
Dimensions:
28.5 x 7.5 x 23.75 in
Chemistry:
Flat Plate Lead Acid
Cells:
12
Plate Rating:
85 Ah / positive plate
Battery Model:
12-085-05
Tray Reference:
973AHL-B
Battery Cover:
Yes
EE Spark Proof:
No
High Gravity:
No
Flow-Rite Watering:
Yes
Flow-Rite Watering SKU:
BK-1C0-201-512
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 12-085-05 on tray 973AHL-B delivers 170 Ah at 24V in a flat-plate lead-acid configuration. The 28.5 x 7.5 x 23.75 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 24V (12 × 2V cells)
  • Capacity: 170 Ah at the 6-hr rate
  • Energy: 3.94 kWh
  • Plate rating: 85 Ah / positive plate
  • Plate configuration: 05-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 28.5 x 7.5 x 23.75 in (L × W × H)
  • Average weight: 475 lbs
  • Battery cover: Yes
  • Tray reference: 973AHL-B

Flat-Plate Construction

Applications

This battery is purpose-built for Class III electric pallet jacks and walkie stackers, where reliable single-shift runtime and straightforward watering maintenance keep the unit on the floor. The 973AHL-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: 2-year full + 1-year prorated warranty
!
