SKU 100671
12-085-07 | Tray 1439-B
One complete new industrial battery, at 27.5 x 10.875 x 22.625 in.
- Battery weight660 lbs
- Dimensions27.5 x 10.875 x 22.625 in
- ConditionNew
- Warranty2-year full + 1-year prorated warranty
Product information
Overview
About this battery
Product Overview
The 12-085-07 on tray 1439-B delivers 255 Ah at 24V in a flat-plate lead-acid configuration. The 27.5 x 10.875 x 22.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 24V (12 × 2V cells)
- Capacity: 255 Ah at the 6-hr rate
- Energy: 5.91 kWh
- Plate rating: 85 Ah / positive plate
- Plate configuration: 07-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 27.5 x 10.875 x 22.625 in (L × W × H)
- Average weight: 660 lbs
- Battery cover: No
- Tray reference: 1439-B
Flat-Plate Construction
Applications
This battery is purpose-built for Class III electric pallet jacks and walkie stackers, where reliable single-shift runtime and straightforward watering maintenance keep the unit on the floor. The 1439-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
Battery specifications
- System voltage: 24V
- Battery dimensions: 27.5 x 10.875 x 22.625 in
- Battery weight: 660 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- 2-year full + 1-year prorated warranty from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Watering System Installed
- Flow-Rite Direct Fill Link
- Water Monitor Installed

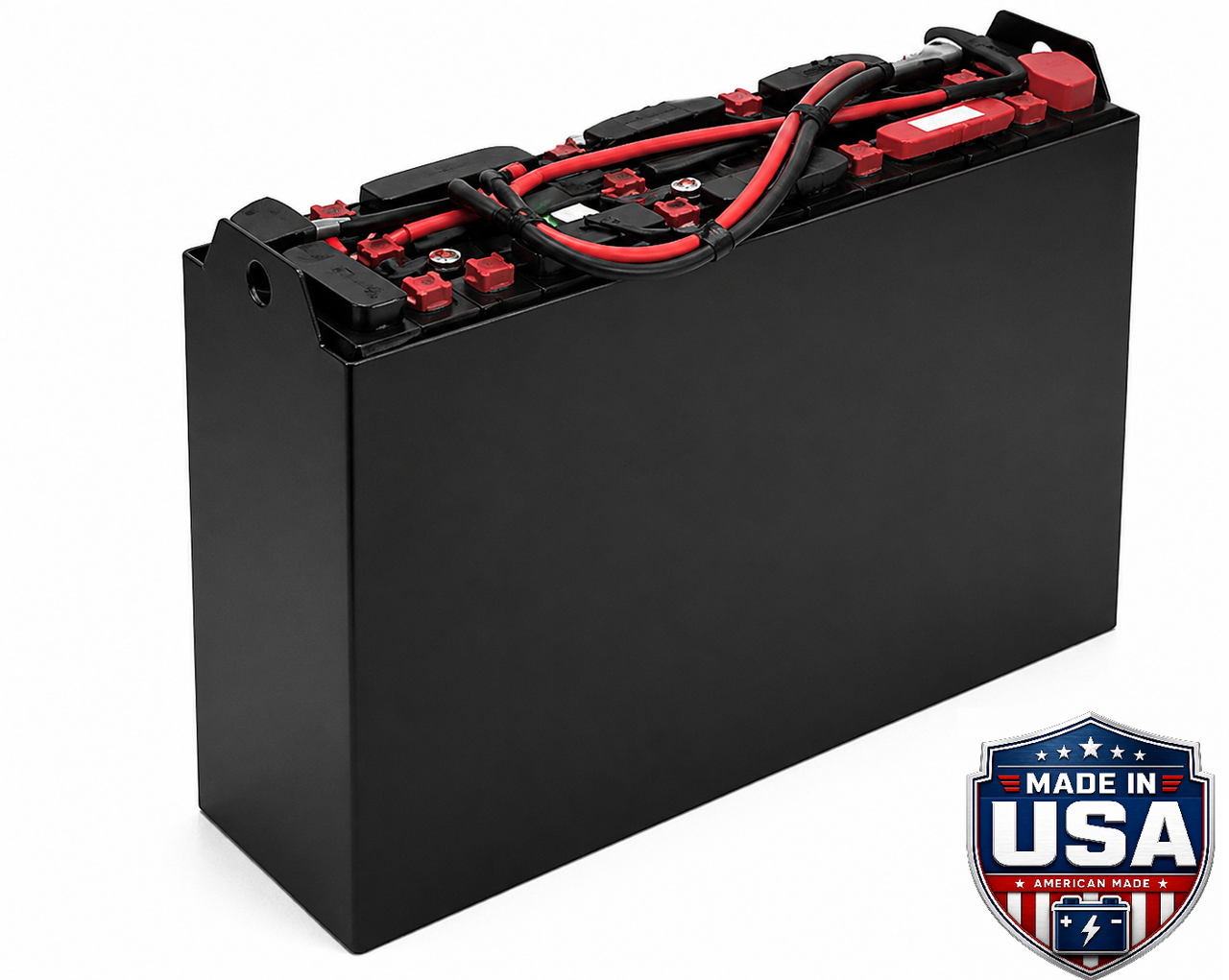

Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Battery identity
| Battery Model | 12-085-07 |
|---|
Electrical and physical
| System Voltage | 24V |
|---|---|
| Capacity | 255 Ah |
| Battery Dimensions | 27.5 x 10.875 x 22.625 in |
| Chemistry | Flat Plate Lead Acid |
| Battery Design | Flat Plate |
| Condition | New |
| Battery Weight | 660 lbs |
| Warranty | 2-year full + 1-year prorated warranty |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
2-year full + 1-year prorated warranty from date of delivery
This is a new flat plate industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
