Product Overview
Product Overview

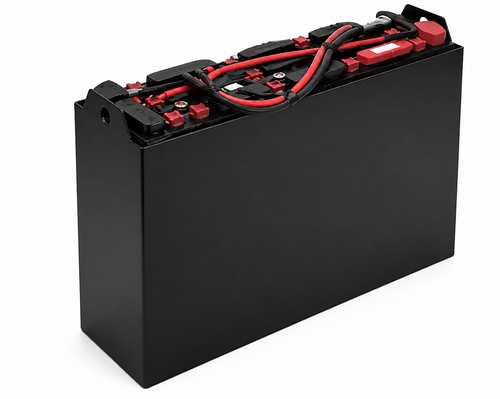

The 12-125-15 on tray 241AHL-B delivers 875 Ah at 24V in a flat-plate lead-acid configuration. The 38.125 x 11.937 x 30.25 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 24V (12 × 2V cells)
- Capacity: 875 Ah at the 6-hr rate
- Energy: 20.27 kWh
- Plate rating: 125 Ah / positive plate
- Plate configuration: 15-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 38.125 x 11.937 x 30.25 in (L × W × H)
- Average weight: 1666 lbs
- Battery cover: No
- Tray reference: 241AHL-B
Flat-Plate Construction
Applications
This battery is purpose-built for Class III electric pallet jacks and walkie stackers, where reliable single-shift runtime and straightforward watering maintenance keep the unit on the floor. The 241AHL-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
Warranty:
Standard 5-year warranty
