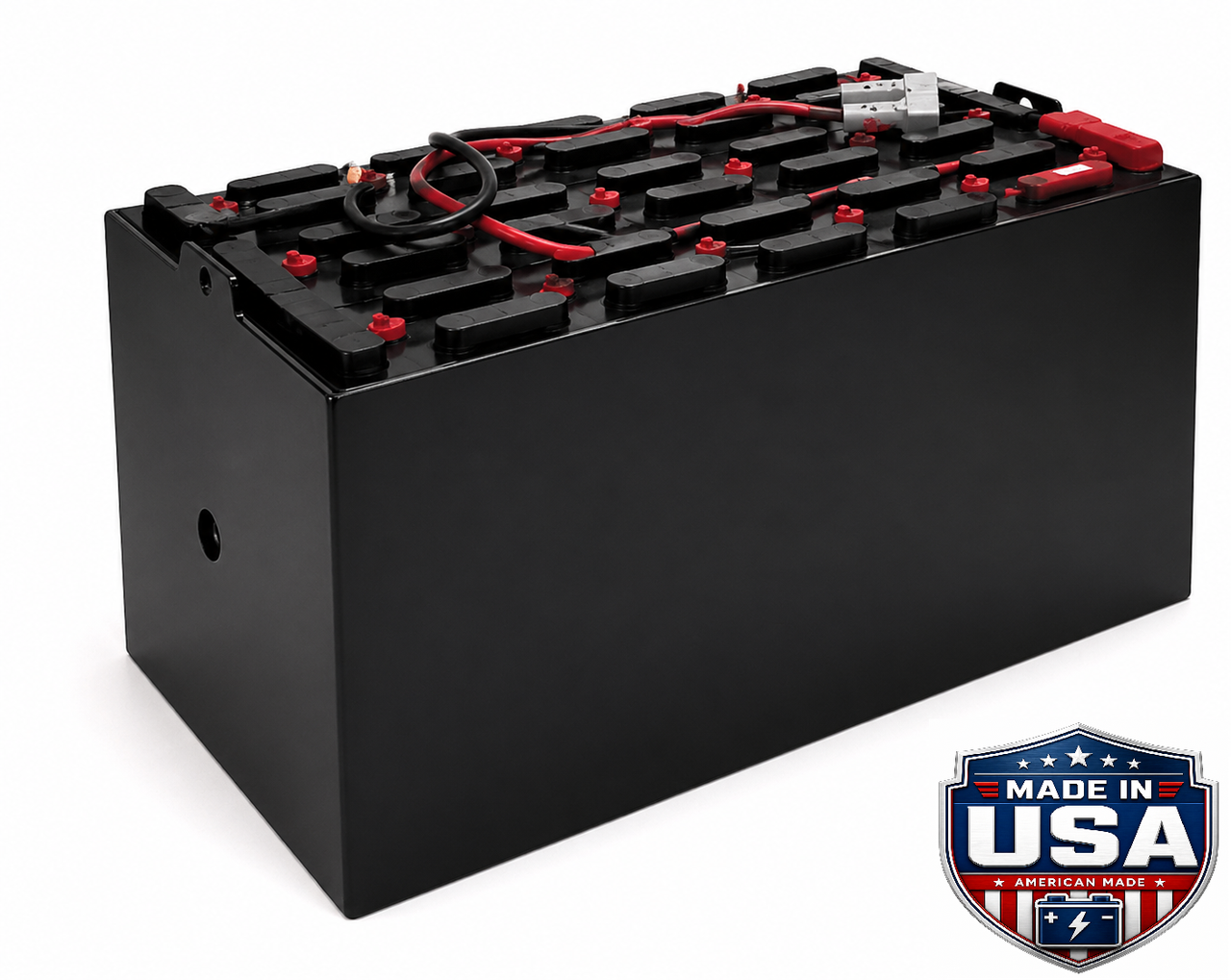

18-100-09 | Tray 1770-B

18-100-09 | Tray 1770-B

SKU: 100882

Voltage36V
Capacity400 Ah
Average Weight1360 lbs
ChemistryFlat Plate Lead Acid
Was: $5,413.20
Now: $5,296.34
SKU:
100882
Voltage:
36V
Capacity (Ah):
400 Ah
Average Weight:
1360 lbs
Length (in):
32.125
Width (in):
12.812
Height (in):
25.625
Dimensions:
32.125 x 12.812 x 25.625 in
Chemistry:
Flat Plate Lead Acid
Cells:
18
Plate Rating:
100 Ah / positive plate
Battery Model:
18-100-09
Tray Reference:
1770-B
Battery Cover:
No
EE Spark Proof:
No
High Gravity:
No
Flow-Rite Watering:
Yes
Flow-Rite Watering SKU:
BK-1C0-201-518
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 18-100-09 on tray 1770-B delivers 400 Ah at 36V in a flat-plate lead-acid configuration. The 32.125 x 12.812 x 25.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 36V (18 × 2V cells)
  • Capacity: 400 Ah at the 6-hr rate
  • Energy: 13.90 kWh
  • Plate rating: 100 Ah / positive plate
  • Plate configuration: 09-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 32.125 x 12.812 x 25.625 in (L × W × H)
  • Average weight: 1360 lbs
  • Battery cover: No
  • Tray reference: 1770-B

Flat-Plate Construction

Applications

This battery is engineered for Class I sit-down counterbalanced forklifts and Class II order pickers running a single shift per day, where flat-plate construction balances acquisition cost against the runtime of equivalent tubular alternatives. The 1770-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: 2-year full + 1-year prorated warranty
!
