Product Overview
Product Overview

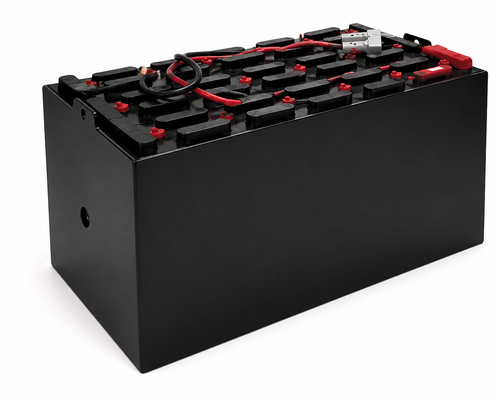

The 18-125-15 on tray 1515-B delivers 875 Ah at 36V in a flat-plate lead-acid configuration. The 38.5 x 17.75 x 30.25 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 36V (18 × 2V cells)
- Capacity: 875 Ah at the 6-hr rate
- Energy: 30.40 kWh
- Plate rating: 125 Ah / positive plate
- Plate configuration: 15-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 38.5 x 17.75 x 30.25 in (L × W × H)
- Average weight: 2515 lbs
- Battery cover: No
- Tray reference: 1515-B
Flat-Plate Construction
Applications
This battery is engineered for Class I sit-down counterbalanced forklifts and Class II order pickers running a single shift per day, where flat-plate construction balances acquisition cost against the runtime of equivalent tubular alternatives. The 1515-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
