Product Overview
Product Overview

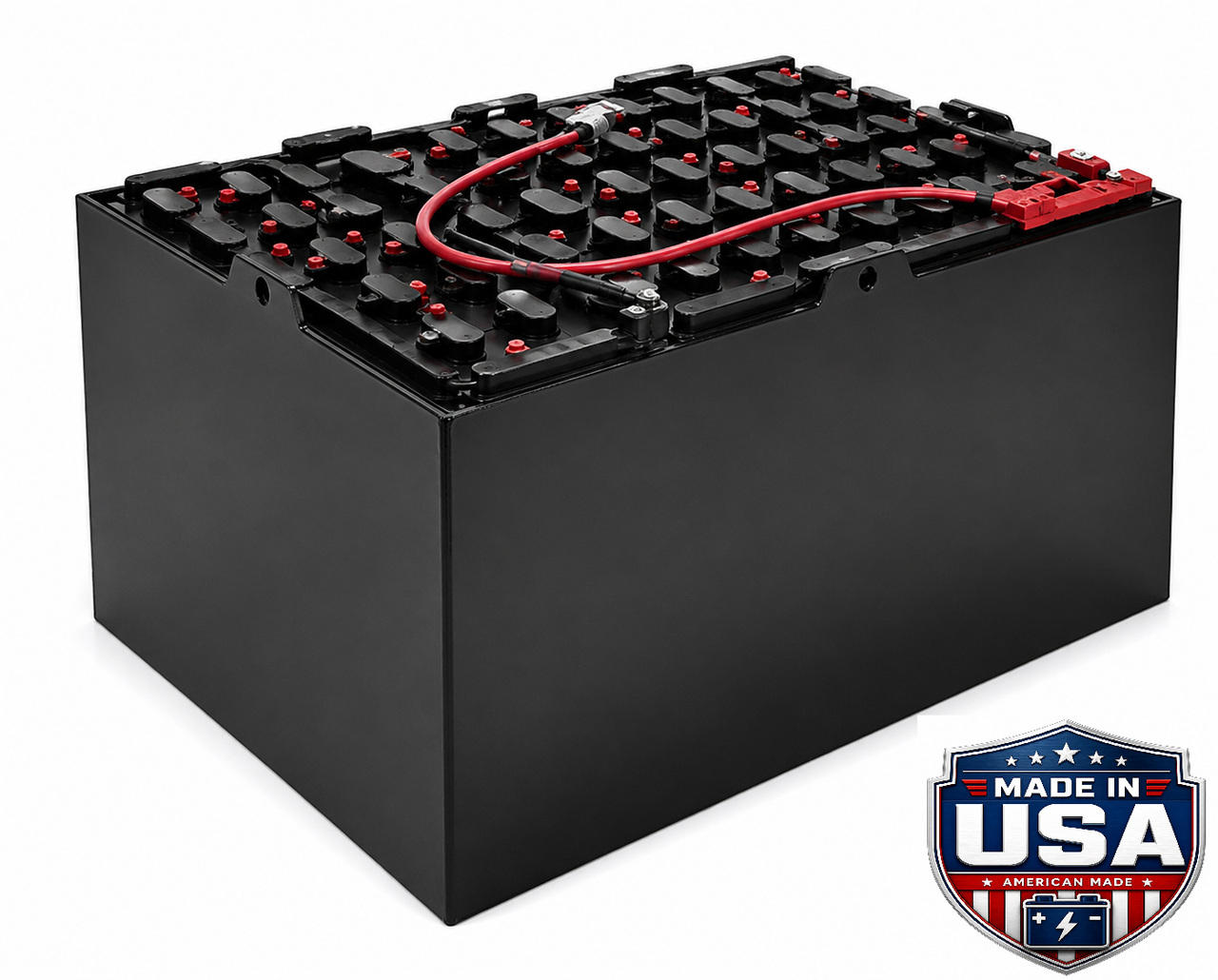

The 24-045-13 on tray 856-8 delivers 270 Ah at 48V in a flat-plate lead-acid configuration. The 37.75 x 20.5 x 15.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 48V (24 × 2V cells)
- Capacity: 270 Ah at the 6-hr rate
- Energy: 12.51 kWh
- Plate rating: 45 Ah / positive plate
- Plate configuration: 13-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 37.75 x 20.5 x 15.625 in (L × W × H)
- Average weight: 1285 lbs
- Battery cover: No
- Tray reference: 856-8
Flat-Plate Construction
Applications
This battery is engineered for full-size Class I counterbalanced forklifts and large Class II lift trucks running a single shift per day. Conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives — a practical choice for moderate-utilization fleets. The 856-8 tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
