Product Overview
Product Overview

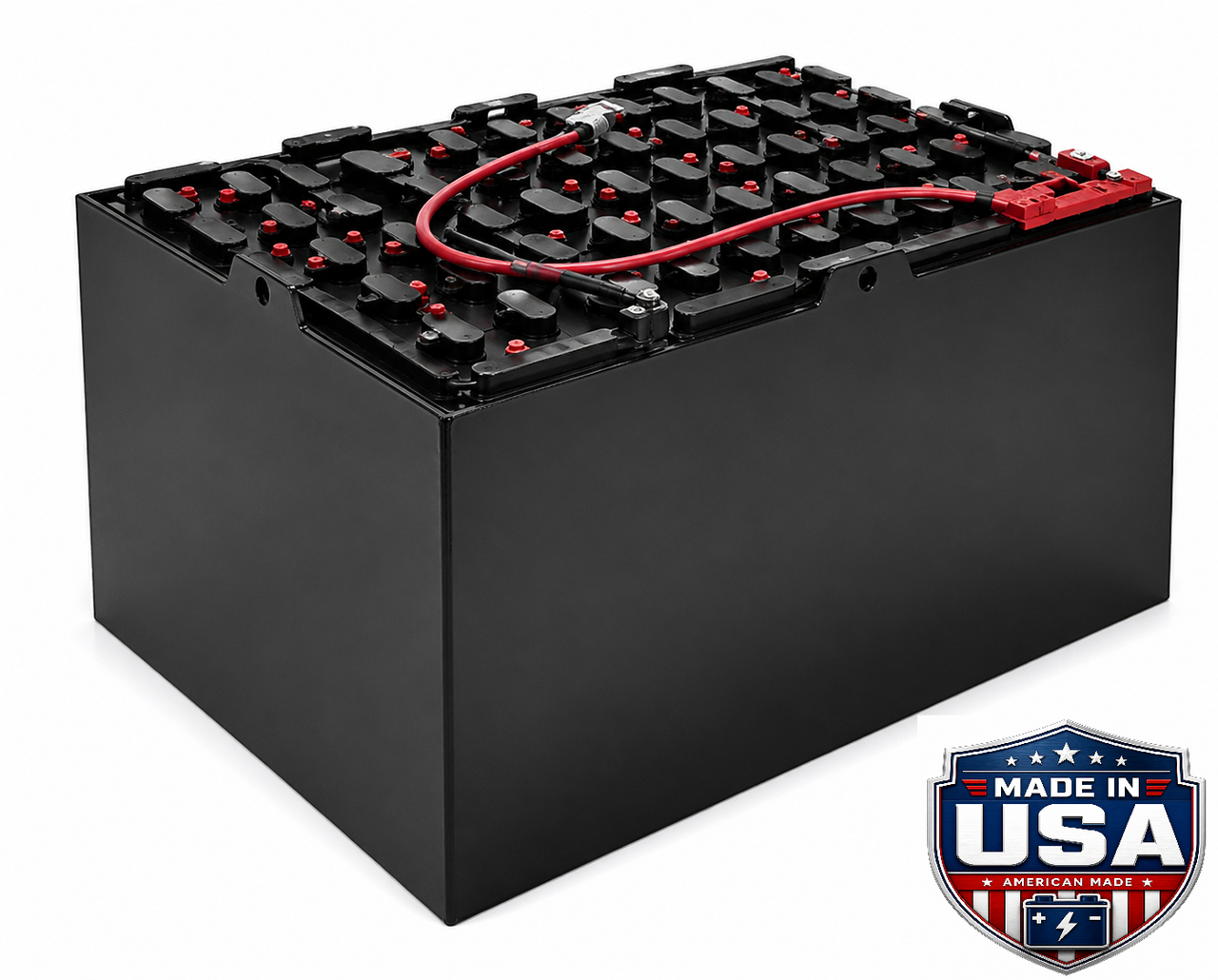

The 24-055-11 on tray 1943-8 delivers 275 Ah at 48V in a flat-plate lead-acid configuration. The 37.75 x 17.5 x 18.25 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 48V (24 × 2V cells)
- Capacity: 275 Ah at the 6-hr rate
- Energy: 12.74 kWh
- Plate rating: 55 Ah / positive plate
- Plate configuration: 11-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 37.75 x 17.5 x 18.25 in (L × W × H)
- Average weight: 1258 lbs
- Battery cover: No
- Tray reference: 1943-8
Flat-Plate Construction
Applications
This battery is engineered for full-size Class I counterbalanced forklifts and large Class II lift trucks running a single shift per day. Conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives — a practical choice for moderate-utilization fleets. The 1943-8 tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
