24-055-17 | Tray 1475-8

24-055-17 | Tray 1475-8

SKU: 100948

Voltage48V
Capacity440 Ah
Average Weight2330 lbs
ChemistryFlat Plate Lead Acid
Was: $9,282.43
Now: $8,822.71
SKU:
100948
Voltage:
48V
Capacity (Ah):
440 Ah
Average Weight:
2330 lbs
Length (in):
35.25
Width (in):
31.812
Height (in):
21.5
Dimensions:
35.25 x 31.812 x 21.5 in
Chemistry:
Flat Plate Lead Acid
Cells:
24
Plate Rating:
55 Ah / positive plate
Battery Model:
24-055-17
Tray Reference:
1475-8
Battery Cover:
No
Flow-Rite Watering:
Yes
Flow-Rite Watering SKU:
BK-1C0-201-524
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

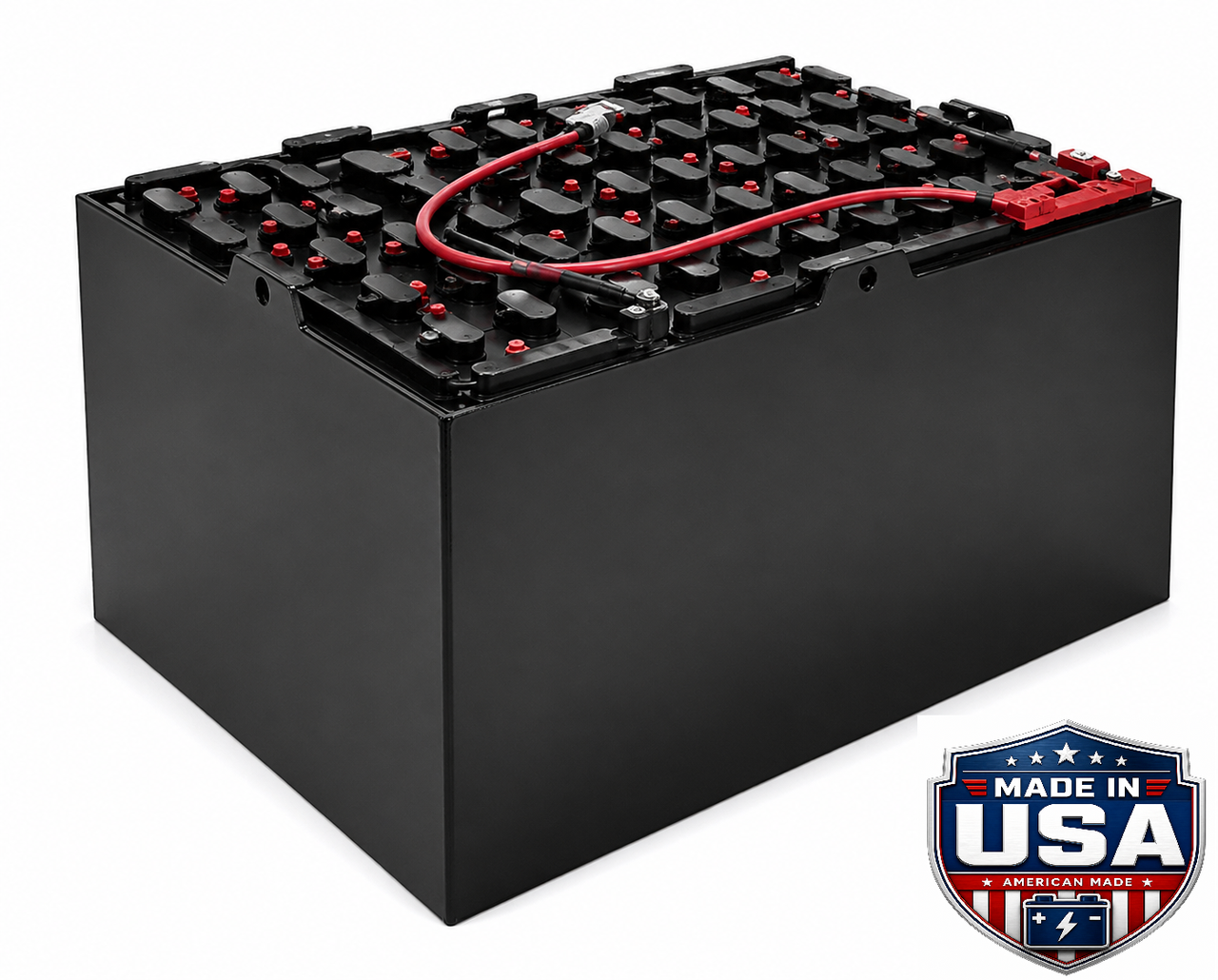

The 24-055-17 on tray 1475-8 delivers 440 Ah at 48V in a flat-plate lead-acid configuration. The 35.25 x 31.812 x 21.5 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 48V (24 × 2V cells)
  • Capacity: 440 Ah at the 6-hr rate
  • Energy: 20.38 kWh
  • Plate rating: 55 Ah / positive plate
  • Plate configuration: 17-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 35.25 x 31.812 x 21.5 in (L × W × H)
  • Average weight: 2330 lbs
  • Battery cover: No
  • Tray reference: 1475-8

Flat-Plate Construction

Applications

This battery is engineered for full-size Class I counterbalanced forklifts and large Class II lift trucks running a single shift per day. Conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives — a practical choice for moderate-utilization fleets. The 1475-8 tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: Standard 5-year warranty
!
