Product Overview
Product Overview

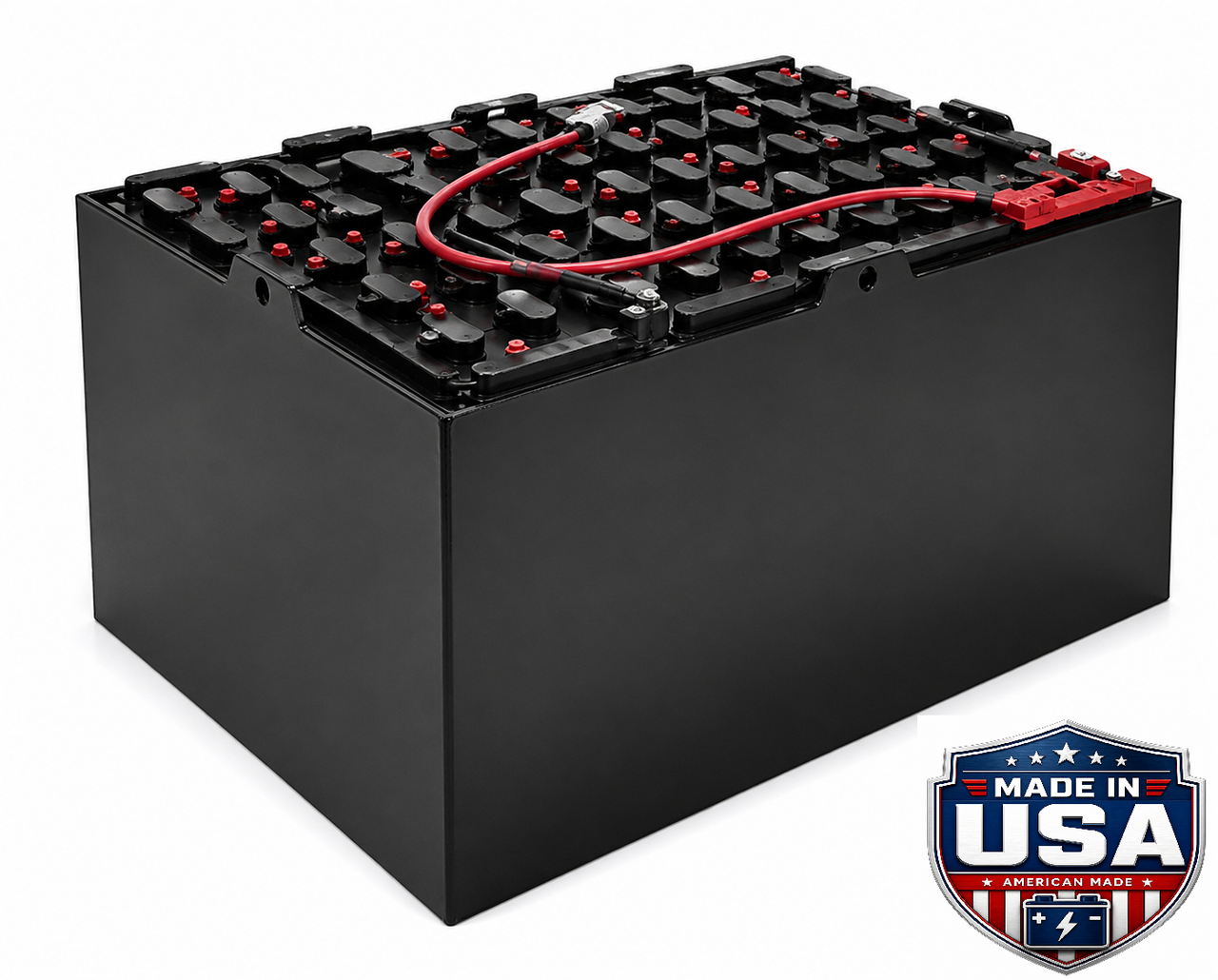

The 24-085-09 on tray 1094-B delivers 340 Ah at 48V in a flat-plate lead-acid configuration. The 35.625 x 16.312 x 22.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.
Key Specifications
- Voltage: 48V (24 × 2V cells)
- Capacity: 340 Ah at the 6-hr rate
- Energy: 15.75 kWh
- Plate rating: 85 Ah / positive plate
- Plate configuration: 09-plate flat-plate assembly
- Chemistry: Flat Plate (lead-acid)
- Dimensions: 35.625 x 16.312 x 22.625 in (L × W × H)
- Average weight: 1495 lbs
- Battery cover: No
- Tray reference: 1094-B
Flat-Plate Construction
Applications
This battery is engineered for full-size Class I counterbalanced forklifts and large Class II lift trucks running a single shift per day. Conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives — a practical choice for moderate-utilization fleets. The 1094-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.
