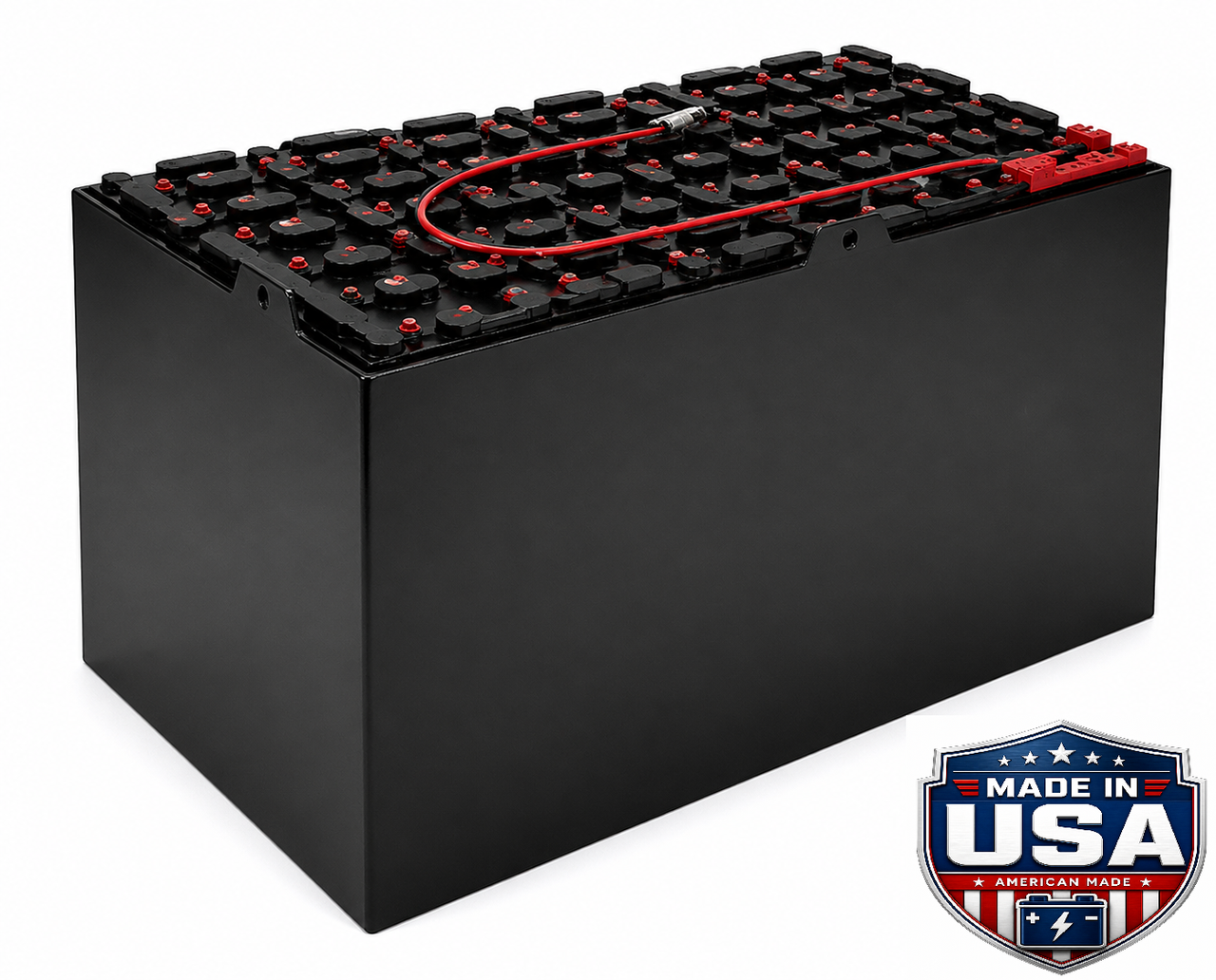

36-085-21 | Tray 1603-B

36-085-21 | Tray 1603-B

SKU: 101104

Voltage72V
Capacity850 Ah
Average Weight4950 lbs
ChemistryFlat Plate Lead Acid
Was: $19,622.18
Now: $17,511.95
SKU:
101104
Voltage:
72V
Capacity (Ah):
850 Ah
Average Weight:
4950 lbs
Length (in):
43.5
Width (in):
43.5
Height (in):
22.625
Dimensions:
43.5 x 43.5 x 22.625 in
Chemistry:
Flat Plate Lead Acid
Cells:
36
Plate Rating:
85 Ah / positive plate
Battery Model:
36-085-21
Tray Reference:
1603-B
Battery Cover:
No
EE Spark Proof:
No
High Gravity:
No
Flow-Rite Watering:
No
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 36-085-21 on tray 1603-B delivers 850 Ah at 72V in a flat-plate lead-acid configuration. The 43.5 x 43.5 x 22.625 (L × W × H) tray footprint balances energy density with broad equipment compatibility, while conventional flat-plate construction keeps acquisition cost lower than equivalent tubular alternatives.

Key Specifications

  • Voltage: 72V (36 × 2V cells)
  • Capacity: 850 Ah at the 6-hr rate
  • Energy: 59.06 kWh
  • Plate rating: 85 Ah / positive plate
  • Plate configuration: 21-plate flat-plate assembly
  • Chemistry: Flat Plate (lead-acid)
  • Dimensions: 43.5 x 43.5 x 22.625 in (L × W × H)
  • Average weight: 4950 lbs
  • Battery cover: No
  • Tray reference: 1603-B

Flat-Plate Construction

Applications

This battery is engineered for high-voltage Class I counterbalanced forklifts and heavy material-handling equipment where peak current capability and broad charger compatibility are valued over the deeper cycle counts of tubular designs. The 1603-B tray geometry has been verified against OEM compartment specifications for compatible equipment. Contact us to confirm tray fit, cable termination, and connector preferences for your specific lift-truck application.

Warranty: Standard 5-year warranty
!
