SKU 101119
40-125-07 | Tray 1966-B
One complete new industrial battery, at 40 x 22 x 30.25 in.
- Battery weight2932 lbs
- Dimensions40 x 22 x 30.25 in
- ConditionNew
- Warranty2-year full + 1-year prorated warranty
Product information
Overview
About this battery
Product Overview
The 40-125-07 on tray 1966-B delivers 375 Ah at 80V in a flat-plate lead-acid configuration, with 40 cells and 28.95 kWh of stored energy, placing it in the entry capacity band of the 80V flat-plate line. The 40.000 × 22.000 × 30.250 (L × W × H) tray gives a standard 80V counterbalance footprint at 2932 lbs in the open-top variant, fitting 80V Class I counterbalanced forklifts and other heavy 80V equipment whose compartment matches this tray reference. Conventional flat-plate construction keeps acquisition cost below equivalent tubular alternatives at the same Ah point.
Key Specifications
- Voltage: 80V (40 × 2V cells)
- Capacity: 375 Ah at the 20-hour rate
- Chemistry: Flat Plate Lead Acid
- Plate rating: 125 Ah / positive plate
- Plate configuration: 07-plate flat-plate assembly
- Energy: 28.95 kWh
- Tray: 1966-B
- Dimensions (L × W × H): 40.000 × 22.000 × 30.250 in
- Average Weight: 2932 lbs
- Battery Cover: No
Battery specifications
- System voltage: 80V
- Battery dimensions: 40 x 22 x 30.25 in
- Battery weight: 2932 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- 2-year full + 1-year prorated warranty from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Watering System Installed
- Flow-Rite Direct Fill Link
- Water Monitor Installed

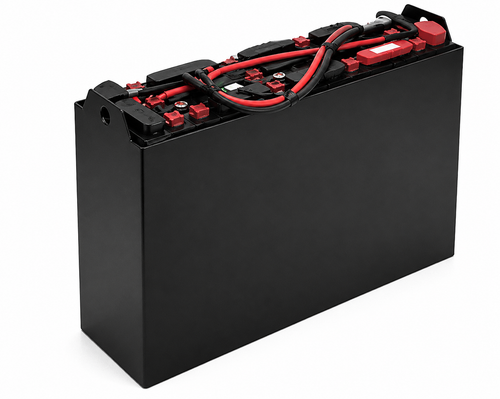

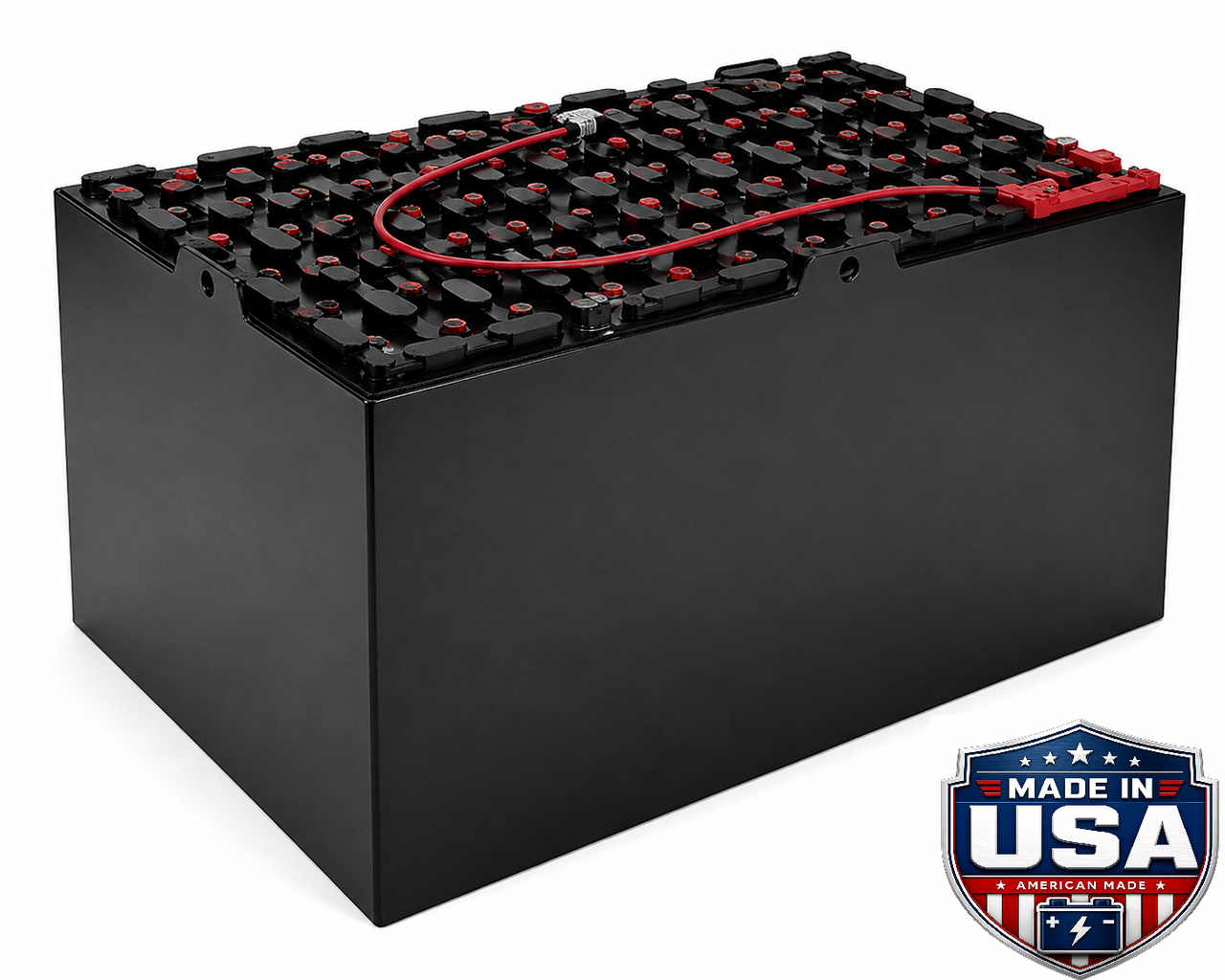

Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Battery identity
| Battery Model | 40-125-07 |
|---|
Electrical and physical
| System Voltage | 80V |
|---|---|
| Capacity | 375 Ah |
| Battery Dimensions | 40 x 22 x 30.25 in |
| Chemistry | Flat Plate Lead Acid |
| Battery Design | Flat Plate |
| Condition | New |
| Battery Weight | 2932 lbs |
| Warranty | 2-year full + 1-year prorated warranty |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
2-year full + 1-year prorated warranty from date of delivery
This is a new flat plate industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
