Product Overview
Product Overview

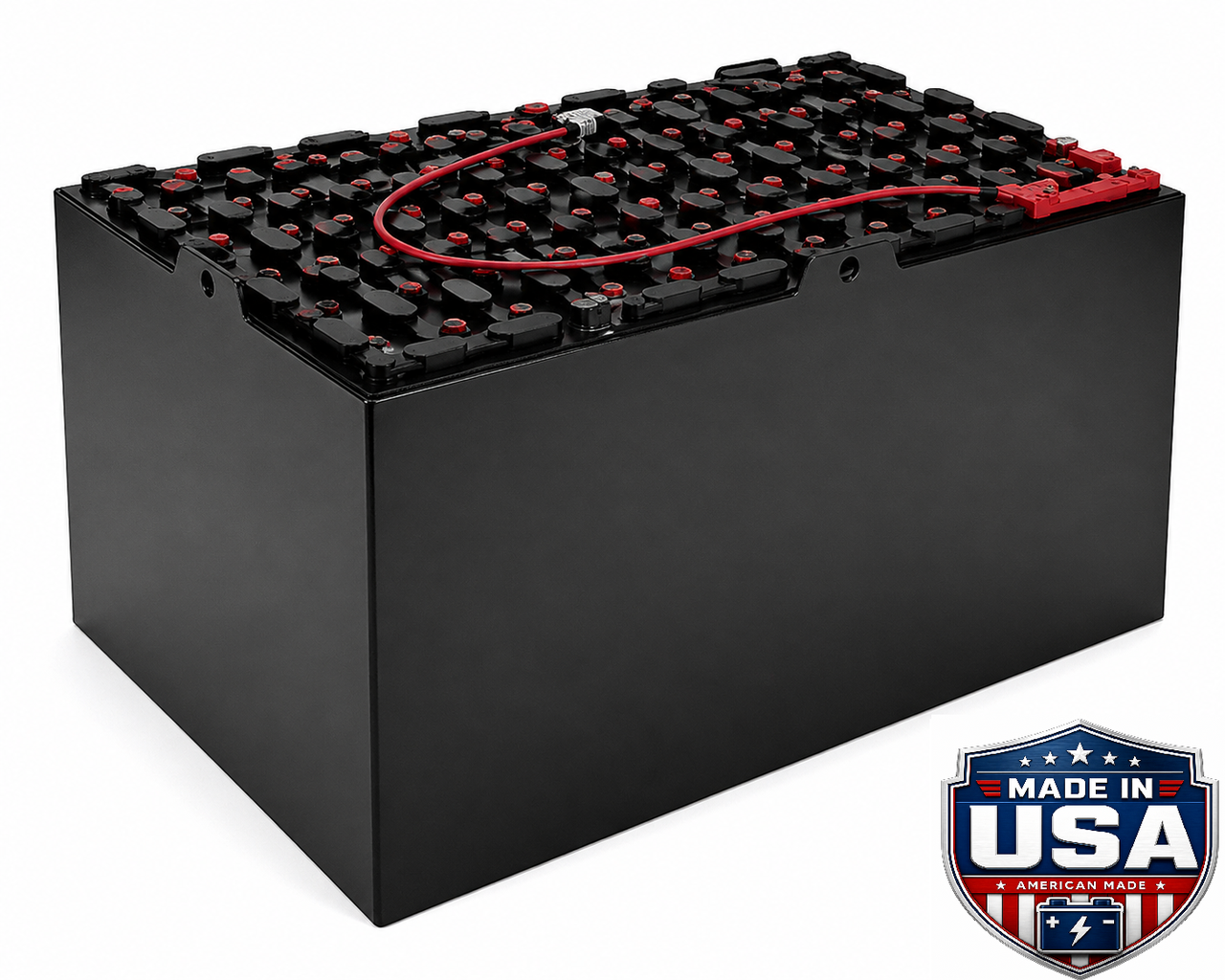

The 40-125-09 on tray 1112-B delivers 500 Ah at 80V in a flat-plate lead-acid configuration, with 40 cells and 38.60 kWh of stored energy, placing it in the mid capacity band of the 80V flat-plate line. The 39.750 × 26.750 × 30.250 (L × W × H) tray gives a standard 80V counterbalance footprint at 3490 lbs in the open-top variant, fitting 80V Class I counterbalanced forklifts and other heavy 80V equipment whose compartment matches this tray reference. Conventional flat-plate construction keeps acquisition cost below equivalent tubular alternatives at the same Ah point. Confirm compartment fit, connector orientation, and lead length against the equipment specification before ordering.
Key Specifications
- Voltage: 80V (40 × 2V cells)
- Capacity: 500 Ah at the 20-hour rate
- Chemistry: Flat Plate Lead Acid
- Plate rating: 125 Ah / positive plate
- Plate configuration: 09-plate flat-plate assembly
- Energy: 38.60 kWh
- Tray: 1112-B
- Dimensions (L × W × H): 39.750 × 26.750 × 30.250 in
- Average Weight: 3490 lbs
- Battery Cover: No
Warranty:
2-year full + 1-year prorated warranty
