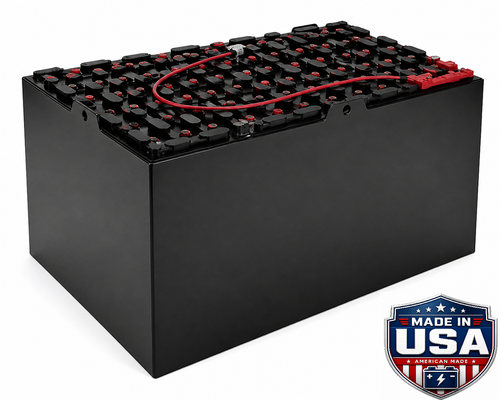

40-125-09 | Tray 1695-B

40-125-09 | Tray 1695-B

SKU: 101125

Voltage80V
Capacity500 Ah
Average Weight3425 lbs
ChemistryFlat Plate Lead Acid
Was: $13,558.33
Now: $12,897.20
SKU:
101125
Voltage:
80V
Capacity (Ah):
500 Ah
Average Weight:
3425 lbs
Length (in):
35.75
Width (in):
25.5
Height (in):
31
Dimensions:
35.75 x 25.5 x 31 in
Chemistry:
Flat Plate Lead Acid
Cells:
40
Plate Rating:
125 Ah / positive plate
Battery Model:
40-125-09
Tray Reference:
1695-B
Battery Cover:
Yes
EE Spark Proof:
No
High Gravity:
No
Flow-Rite Watering:
Yes
Flow-Rite Watering SKU:
BK-1C0-201-540
Flow-Rite Direct Fill:
Yes
Flow-Rite Direct Fill SKU:
BA-MS-320-20
Battery Watering Monitor:
Yes
Battery Watering Monitor SKU:
BA-491
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Not sure this battery fits? Use the Battery Finder or contact Radian before checkout. We can help verify voltage, Ah, tray size, connector, lead length, and freight requirements before shipment.

Ships by freight. Final freight options are confirmed at checkout. Non-stock or large orders typically require 4-6 weeks.

Product Overview

Product Overview

The 40-125-09 on tray 1695-B delivers 500 Ah at 80V in a flat-plate lead-acid configuration, with 40 cells and 38.60 kWh of stored energy, placing it in the mid capacity band of the 80V flat-plate line. The 35.750 × 25.500 × 31.000 (L × W × H) tray gives a slightly taller footprint at 3425 lbs in the covered variant, fitting 80V Class I counterbalanced forklifts and other heavy 80V equipment whose compartment matches this tray reference. Conventional flat-plate construction keeps acquisition cost below equivalent tubular alternatives at the same Ah point. Confirm compartment fit, connector orientation, and lead length against the equipment specification before ordering.

Key Specifications

  • Voltage: 80V (40 × 2V cells)
  • Capacity: 500 Ah at the 20-hour rate
  • Chemistry: Flat Plate Lead Acid
  • Plate rating: 125 Ah / positive plate
  • Plate configuration: 09-plate flat-plate assembly
  • Energy: 38.60 kWh
  • Tray: 1695-B
  • Dimensions (L × W × H): 35.750 × 25.500 × 31.000 in
  • Average Weight: 3425 lbs
  • Battery Cover: Yes
Warranty: 2-year full + 1-year prorated warranty
!
