Product Overview
Product Overview

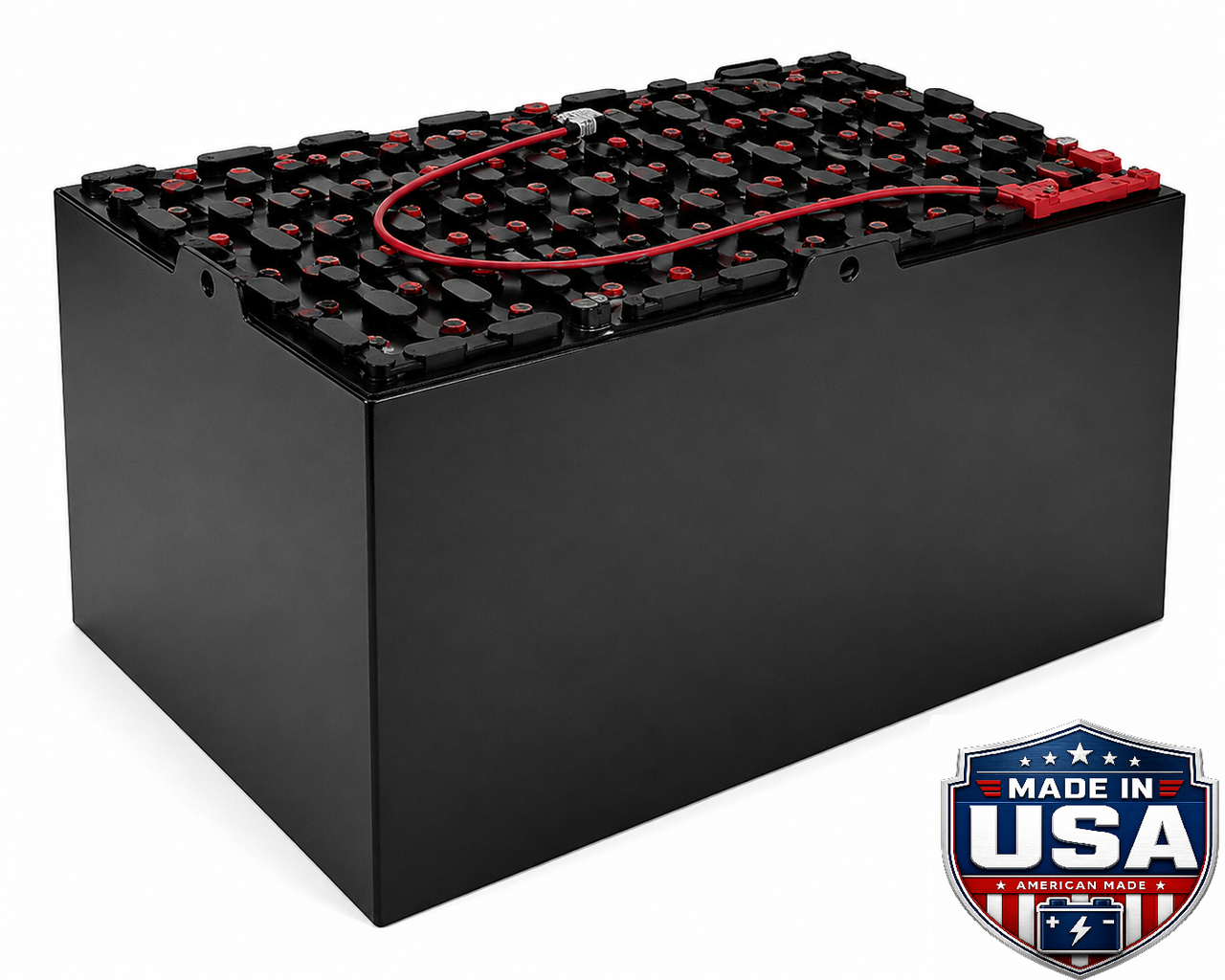

The 40-125-13 on tray 1150-B delivers 750 Ah at 80V in a flat-plate lead-acid configuration, with 40 cells and 57.90 kWh of stored energy, placing it at the top of the 80V flat-plate capacity range. The 40.750 × 33.000 × 30.250 (L × W × H) tray gives a wide footprint at 4810 lbs in the open-top variant, fitting 80V Class I counterbalanced forklifts and other heavy 80V equipment whose compartment matches this tray reference. Conventional flat-plate construction keeps acquisition cost below equivalent tubular alternatives at the same Ah point. Confirm compartment fit, connector orientation, and lead length against the equipment specification before ordering.
Key Specifications
- Voltage: 80V (40 × 2V cells)
- Capacity: 750 Ah at the 20-hour rate
- Chemistry: Flat Plate Lead Acid
- Plate rating: 125 Ah / positive plate
- Plate configuration: 13-plate flat-plate assembly
- Energy: 57.90 kWh
- Tray: 1150-B
- Dimensions (L × W × H): 40.750 × 33.000 × 30.250 in
- Average Weight: 4810 lbs
- Battery Cover: No
Warranty:
Standard 5-year warranty
