Product Overview

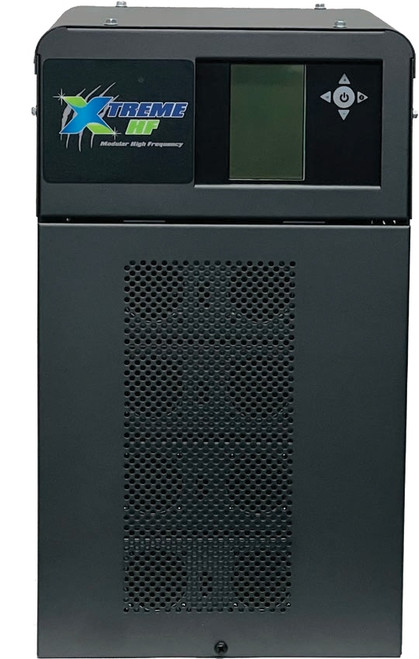

Three-Phase 480 VAC High-Frequency Charger
The BB12-130-E3 is a three-phase 480 VAC high-frequency industrial battery charger for 24V batteries. Three-phase 480 is the standard incoming service in most warehouse and manufacturing battery rooms — it delivers more power per circuit, lower cable losses, and the highest efficiency available on this platform. The HF design supports multi-chemistry batteries with auto-load equalization and module auto-bypass for fault-tolerant operation.
Charger Specifications
- Output voltage: 24V
- Model: BB12-130-E3
- Max output current: 130 A DC
- Max AC amp draw: 4.9 A
- AC input: 480 VAC
- Weight: 60 lbs
- Charging method: High-Frequency MOSFET (modular)
- Modes: Conventional, opportunity, fast charge
- Efficiency: 94% peak / 95% nominal
- Power Factor: 95%
- Communication: Bluetooth standard; CAN Bus / LAN / WIFI optional
- Display: LCD + keypad
Warranty & Support
The BB12-130-E3 ships from Radian configured for your specified DC connector, cable length, and battery amp-hour. Contact a Radian representative to confirm fitment, request a written quote, and review available freight options.
Warranty:
Contact us for warranty details
