BB12-260-D3Z

BB12-260-D3Z

SKU: 101385

Voltage24V
Average Weight63
Was: $3,871.42
Now: $3,507.00
SKU:
101385
Charger Type:
Three Phase 208/240
Voltage:
24V
Output Voltage:
24V
VAC Input:
208/240 VAC
Input Voltage:
208/240 VAC
Max AC Amp Draw:
22.4 A
Max Output Current:
260 A DC
Charger Group:
Three Phase 208/240
Std 8Hr Recharge Range:
1301-1700
Opportunity Recharge Range:
801-1040
Fast Recharge Range:
501-650
Case Size:
905
Dimensions:
14.63″ × 13.13″ × 15.6″
Average Weight:
63
Configure & Add To Cart
Adding to cart… The item has been added

Freight options are confirmed at checkout.

Product Overview

Three-Phase 208/240 VAC High-Frequency Charger

The BB12-260-D3Z is a three-phase 208/240 VAC high-frequency charger for 24V industrial batteries. The 208/240 three-phase platform is well suited to facilities where a 480 VAC drop is unavailable — it preserves the efficiency benefits of three-phase service on lower-voltage feeders. Its modular HF design makes this a versatile choice for mixed-fleet battery rooms.

Charger Specifications

  • Output voltage: 24V
  • Model: BB12-260-D3Z
  • Max output current: 260 A DC
  • Max AC amp draw: 22.4 A
  • AC input: 208/240 VAC
  • Weight: 63 lbs
  • Charging method: High-Frequency MOSFET (modular)
  • Modes: Conventional, opportunity, fast charge
  • Efficiency: 94% peak / 95% nominal
  • Power Factor: 95%
  • Communication: Bluetooth standard; CAN Bus / LAN / WIFI optional
  • Display: LCD + keypad

Warranty & Support

The BB12-260-D3Z ships from Radian configured for your specified DC connector, cable length, and battery amp-hour. Contact a Radian representative to confirm fitment, request a written quote, and review available freight options.

Warranty: Contact us for warranty details

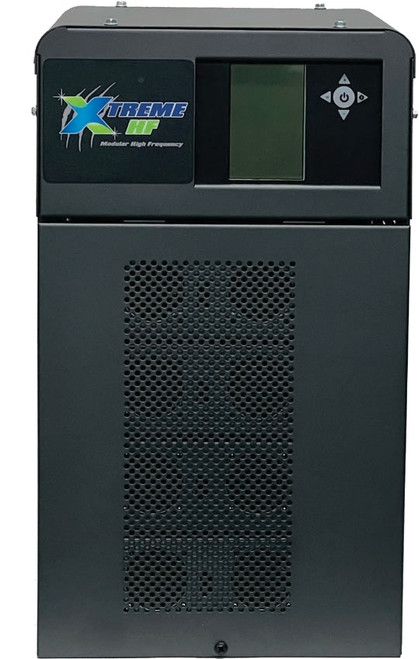

BB12-200-D3Z
