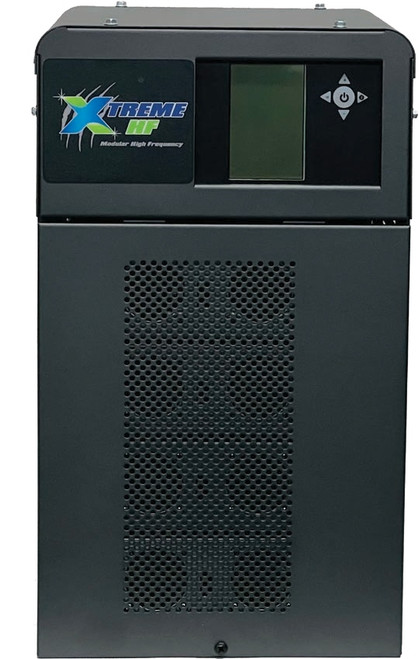

BB24-4C-D1

Multi-Voltage High-Frequency Charger

The BB24-4C-D1 is a multi-voltage high-frequency charger that auto-identifies and charges 36/48V batteries across mixed-fleet warehouses. Multi-voltage units eliminate the risk of plugging the wrong battery into the wrong charger — especially valuable in shared maintenance bays and rental fleets. Bluetooth-ready and lithium-capable, with auto-load equalization and module auto-bypass.

Charger Specifications

• Output voltage: 36/48V
• Model: BB24-4C-D1
• Max output current: 132 A DC
• AC input: 120/208/240 VAC
• Weight: 75 lbs
• Cabinet (D × W × H): 14.63″ × 13.13″ × 22.6″
• Charging method: High-Frequency MOSFET (modular)
• Chemistry support: Flooded lead-acid, GEL, AGM, Lithium-Ion
• Modes: Conventional, opportunity, auto-detect voltage
• Efficiency: 94% peak / 95% nominal
• Power Factor: 95%
• Voltage detection: Multi-Volt, Multi-Amp, Auto-Sensing
• Display: LCD + keypad with Bluetooth

Warranty & Support

The BB24-4C-D1 ships from Radian configured for your specified DC connector, cable length, and battery amp-hour. Contact a Radian representative to confirm fitment, request a written quote, and review available freight options.
