Standard 5-year warranty
Product Overview
Product Overview

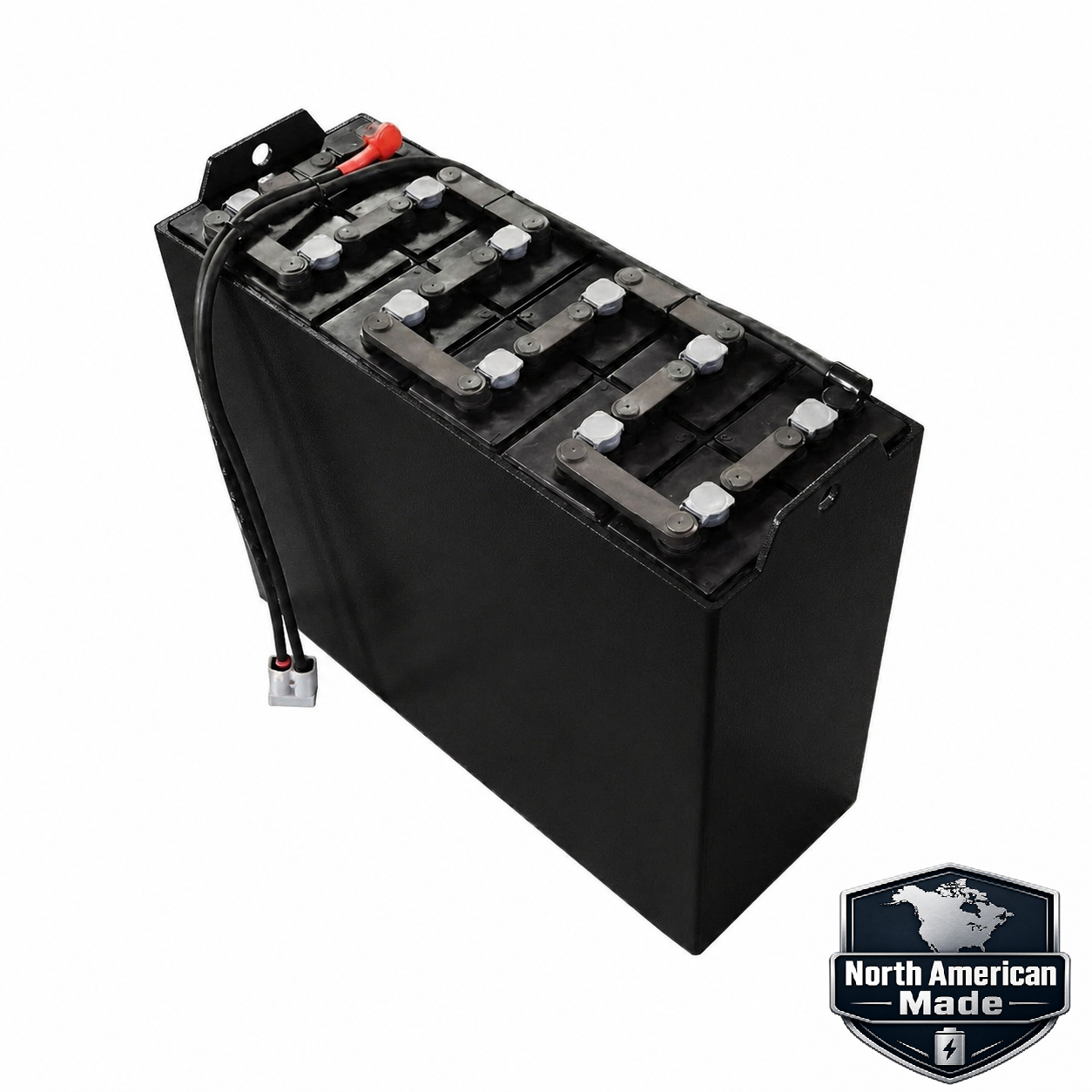

The GT12-125-19 is a 24V tubular lead-acid industrial battery rated at 1,200 Ah at the 20-hour rate, built on a 19-plate per cell configuration in the taller 125 Ah-per-plate series. At 1,970 lbs in a 38.33 × 14.95 × 30.88-inch footprint, it targets the most energy-intensive 24V Class I and Class II applications where maximum runtime per charge cycle is a higher priority than minimizing tray height. Confirm compartment height clearance, connector type, and lead length before ordering.
Key Specifications
- Voltage: 24V (12 × 2V cells)
- Capacity: 1,200 Ah at the 20-hour rate
- Chemistry: Tubular Lead Acid
- Plates per cell: 19 (125 Ah / plate series)
- Dimensions (L × W × H): 38.33 × 14.95 × 30.88 in
- Average Weight: 1,970 lbs
- Cover: No
Warranty:
Standard 5-year warranty
