SKU 100461
GT24-125-15
One complete new industrial battery, at 44" x 23.5" x 30.56".
- Battery weight2961 lbs
- Dimensions44" x 23.5" x 30.56"
- ConditionNew
- WarrantyStandard 5-year warranty
Product information
Overview
About this battery
The GT24-125-15 steps up to 960 Ah at 48V with seven positive 125 Ah/plate cells in a 15-plate tall-tray configuration — purpose-built for larger Class I counterbalanced forklifts whose battery bays offer generous vertical clearance but limited floor width. The 44 × 23.50 × 30.56" tray delivers high energy output without expanding the footprint into adjacent equipment clearances.
- Voltage: 48V (24 × 2V cells)
- Capacity: 960 Ah at 6-hr rate
- Plate configuration: 125 Ah/plate, 15-plate tall-tray assembly (7 positive)
- Dimensions: 44 × 23.50 × 30.56" (L × W × H)
- Weight: 2,961 lbs
- Cover: None
Battery specifications
- System voltage: 48V
- Battery dimensions: 44" x 23.5" x 30.56"
- Battery weight: 2961 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- Standard 5-year warranty from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Watering
- Flow-Rite Direct Fill
- BWT Water Monitor

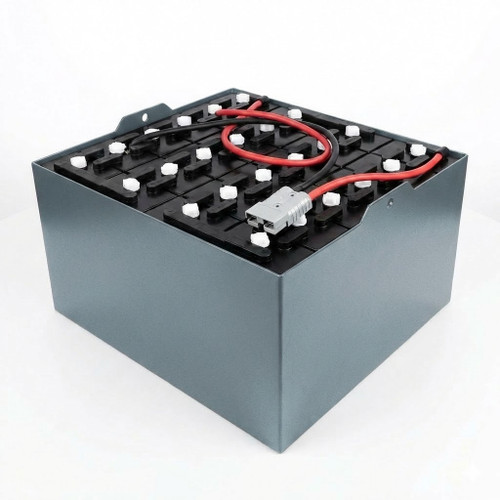

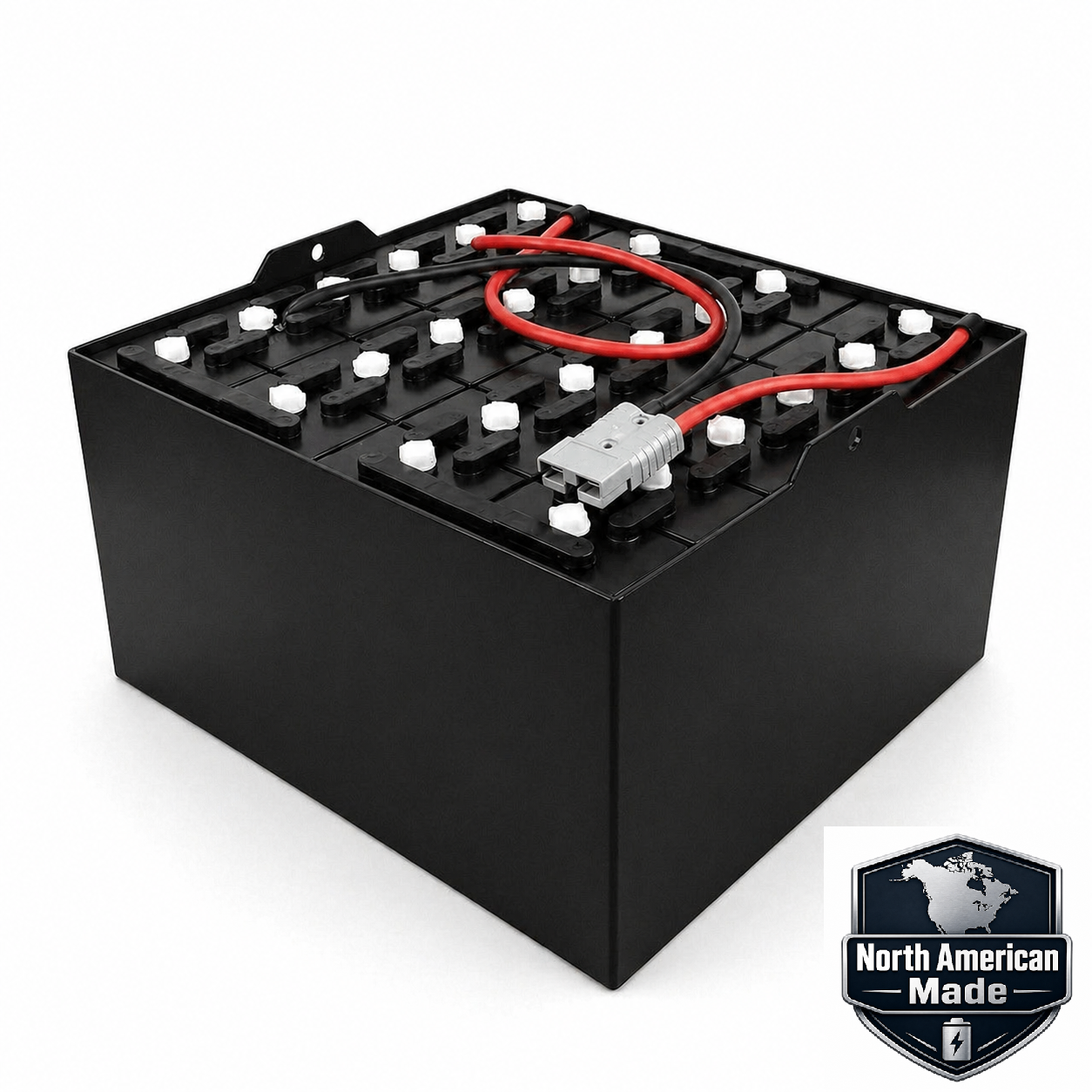

Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Electrical and physical
| System Voltage | 48V |
|---|---|
| Capacity | 960 Ah |
| Battery Dimensions | 44" x 23.5" x 30.56" |
| Chemistry | Tubular Lead Acid |
| Battery Design | Tubular |
| Condition | New |
| Battery Weight | 2961 lbs |
| Warranty | Standard 5-year warranty |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
Standard 5-year warranty from date of delivery
This is a new tubular industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
