SKU 100385
GT40-4PG590L-1
One complete new industrial battery, at 39.75" x 27.5" x 30.81".
- Battery weight3511 lbs
- Dimensions39.75" x 27.5" x 30.81"
- ConditionNew
- WarrantyContact us for warranty details
Product information
Overview
About this battery
The GT40-4PG590L-1 matches the 620 Ah / 80V output of the standard GT40-4PG590L in the identical 39.75 × 27.50 × 30.81" tall-tray envelope, but at a ballasted 3,511 lbs — 178 lbs heavier — to satisfy OEM counterweight minimums on large-frame 80V forklifts where the standard-weight configuration falls short of stability requirements.
- Voltage: 80V (40 × 2V cells)
- Capacity: 620 Ah at 6-hr rate
- Plate technology: Tubular positive plates, 590-class tall-tray cells (4 positive)
- Dimensions: 39.75 × 27.50 × 30.81" (L × W × H)
- Weight: 3,511 lbs (ballasted)
- Cover: None
Battery specifications
- System voltage: 80V
- Battery dimensions: 39.75" x 27.5" x 30.81"
- Battery weight: 3511 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- Contact us for warranty details from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Watering
- Flow-Rite Direct Fill
- BWT Water Monitor

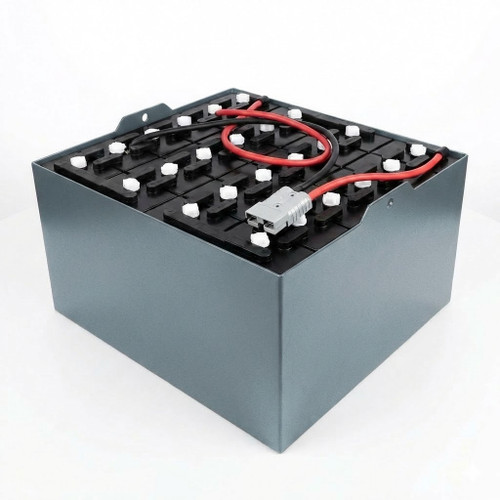

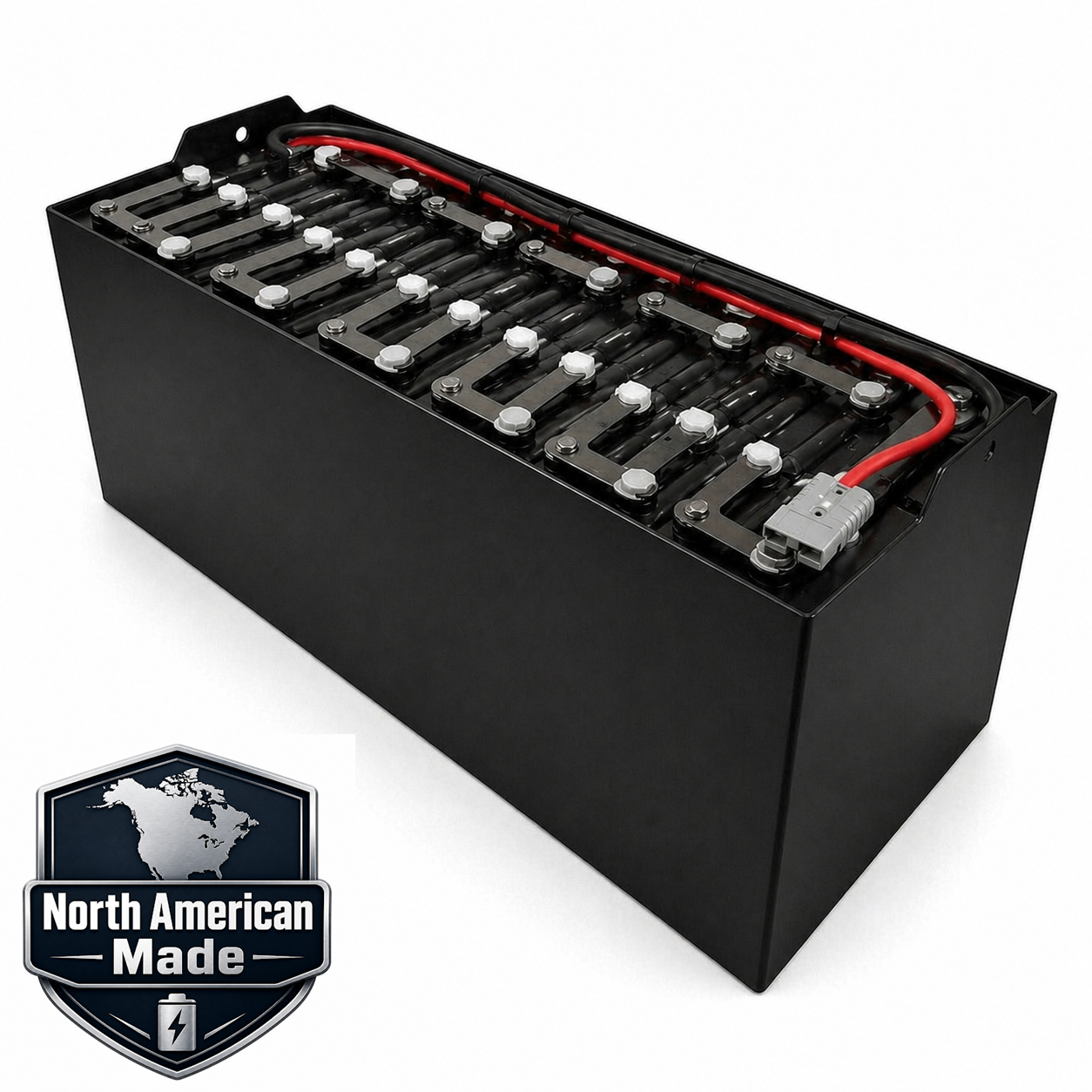

Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Electrical and physical
| System Voltage | 80V |
|---|---|
| Capacity | 620 Ah |
| Battery Dimensions | 39.75" x 27.5" x 30.81" |
| Chemistry | Tubular Lead Acid |
| Battery Design | Tubular |
| Condition | New |
| Battery Weight | 3511 lbs |
| Warranty | Contact us for warranty details |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
Contact us for warranty details from date of delivery
This is a new tubular industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
