SKU 100387
GT40-5PG590L
One complete new industrial battery, at 40.25" x 33.25" x 30.75".
- Battery weight4169 lbs
- Dimensions40.25" x 33.25" x 30.75"
- ConditionNew
- WarrantyContact us for warranty details
Product information
Overview
About this battery
With five positive plates in tall-format 590-class cell design, the GT40-5PG590L achieves 775 Ah at 80V — positioned between the standard 11-plate 125-series offerings — making it a specialized fit for 80V Class I forklifts whose compartment geometry and counterweight target align with the 40.25 × 33.25 × 30.75" tall-tray format. At 4,169 lbs, it provides considerable counterweight mass for large-frame heavy-lift trucks.
- Voltage: 80V (40 × 2V cells)
- Capacity: 775 Ah at 6-hr rate
- Plate technology: Tubular positive plates, 590-class tall-tray cells (5 positive)
- Dimensions: 40.25 × 33.25 × 30.75" (L × W × H)
- Weight: 4,169 lbs
- Cover: None
Battery specifications
- System voltage: 80V
- Battery dimensions: 40.25" x 33.25" x 30.75"
- Battery weight: 4169 lbs
These are the fixed product specifications currently recorded. A Radian representative will review fitment and final specifications before shipment.
What’s included
- One complete new industrial battery
- Contact us for warranty details from date of delivery
- Pre-shipment fitment and specification review
Optional, when selected above
- Flow-Rite Watering
- Flow-Rite Direct Fill
- BWT Water Monitor

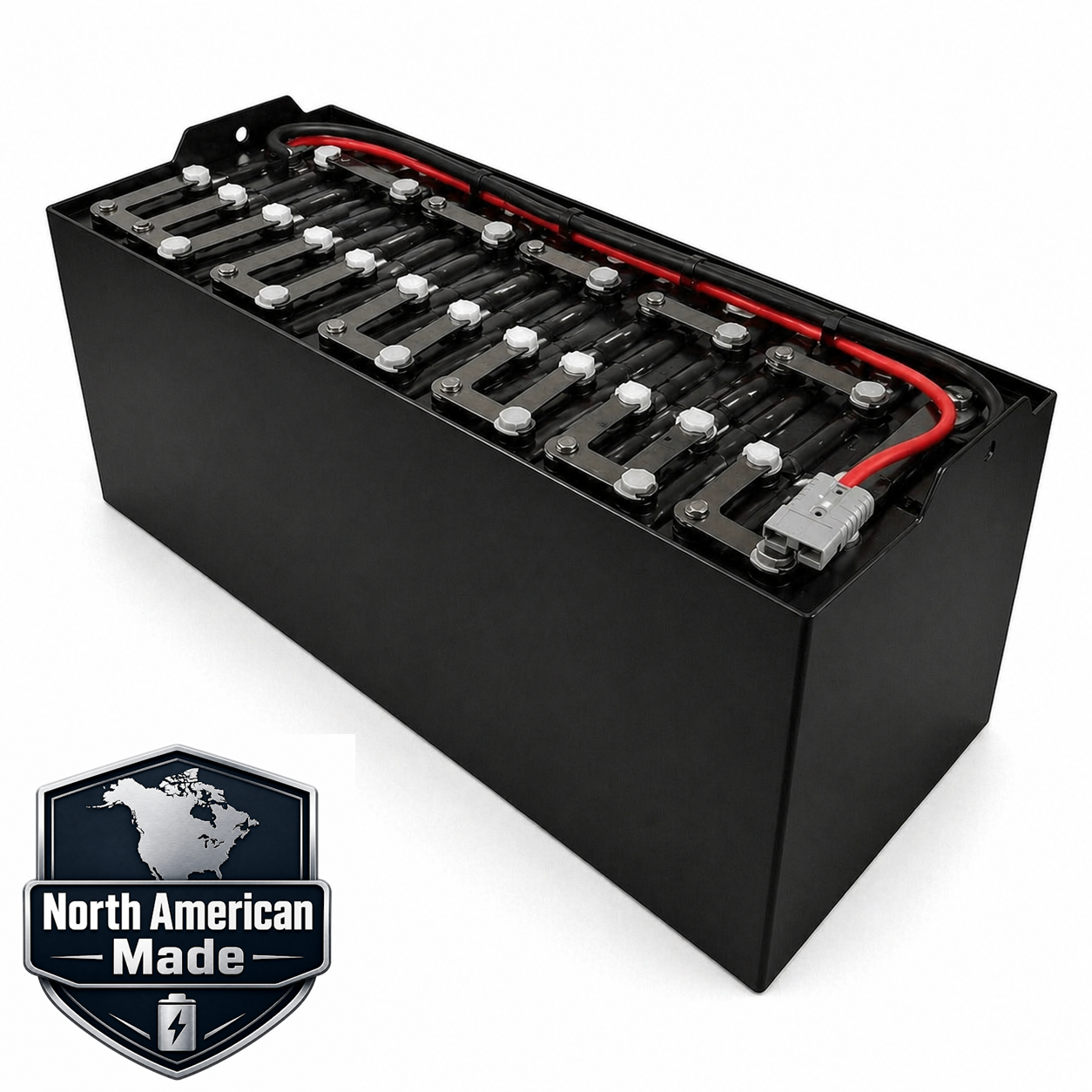

Photographs are representative of this battery model. A delivered unit may vary cosmetically from the images shown.
Specifications
Electrical and physical
| System Voltage | 80V |
|---|---|
| Capacity | 775 Ah |
| Battery Dimensions | 40.25" x 33.25" x 30.75" |
| Chemistry | Tubular Lead Acid |
| Battery Design | Tubular |
| Condition | New |
| Battery Weight | 4169 lbs |
| Warranty | Contact us for warranty details |
Shipping and returns
- Freight
- Industrial batteries ship by freight. Final freight options and any lift-gate or appointment requirements are confirmed at checkout.
- Returns
- Contact Radian before returning a battery so the return can be authorised and shipped safely. Read the returns policy.
Warranty
Contact us for warranty details from date of delivery
This is a new tubular industrial battery, supplied under the standard Radian new-product warranty. Warranty service is arranged through Radian; contact us before returning or servicing the battery.
Need help choosing?
Our battery specialists can talk through voltage, compartment dimensions, terminal configuration and freight for this battery.
We’ll confirm fitment before shipment
To help ensure the correct product and setup, a Radian representative will review your application, compatibility requirements, configuration, and final specifications prior to shipment.
